Braking BY9004L W-FIX Batfly 220 Left Front Brake Disc for Can-Am Commander 1000 Except Package XTP (19-20), Commander MAX 1000

Braking BY9004L W-FIX Batfly Ø220mm Left Front Brake Disc for Various models of Can-Am

BY9004L

New product

Important: This reference corresponds to a single side. If your motorcycle is equipped with discs on both sides, you will find the disc for the opposite side in the related products at the bottom of the product page.

More details

152,58 €
Tax incl.

Data sheet

SideLeft
Brand:Braking

More info

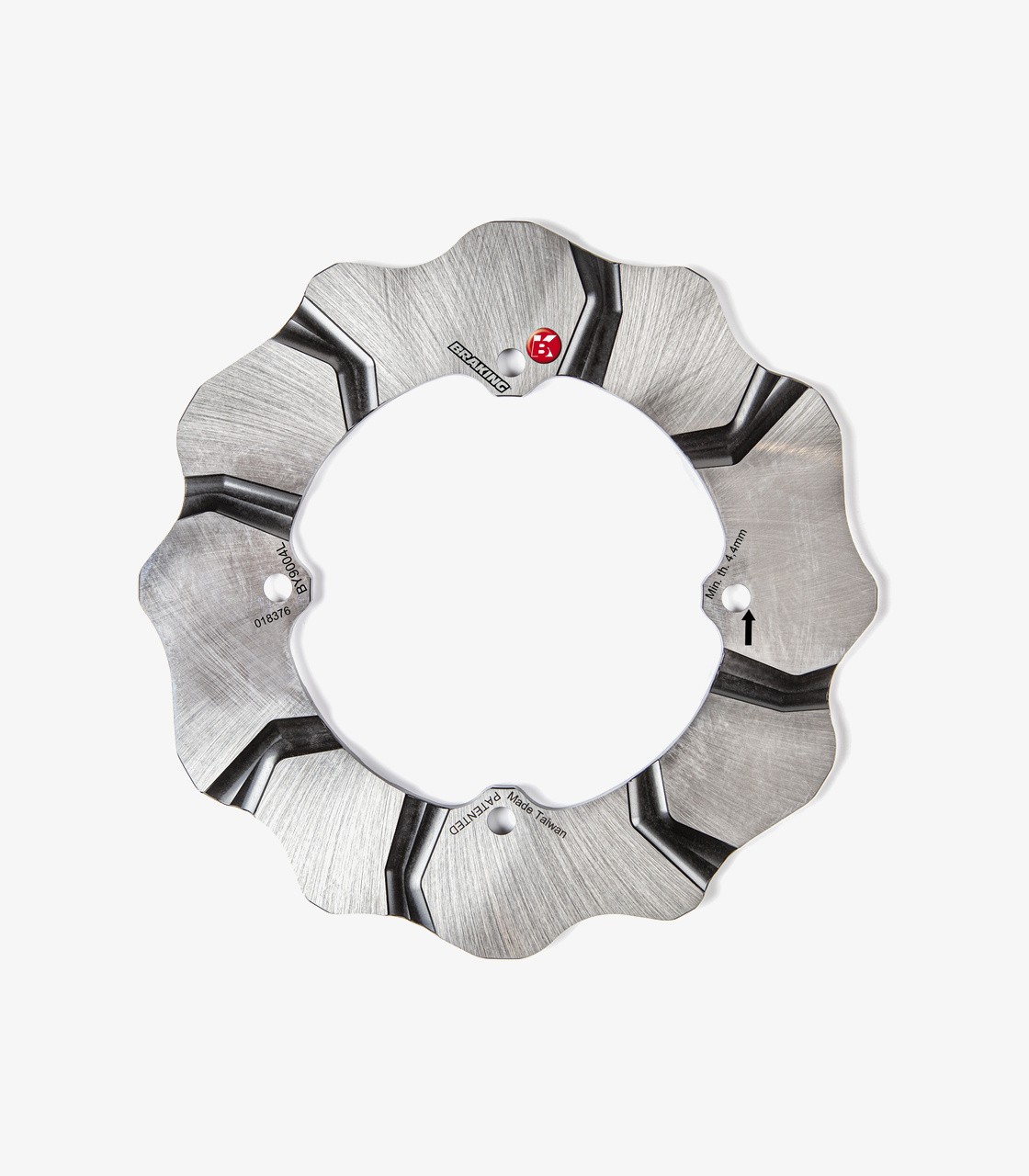

Braking disc BY9004L uses the W-FIX Batfly design and fits the front brake on the left-hand side of Can-Am motorcycles. W-FIX Batfly combines fixed construction, dedicated grooves and a Wave profile to support ventilation and pad cleaning.

  • Mounting position: front.
  • Side: left.
  • Design: W-FIX Batfly.
  • Outer diameter: 220 mm.
  • Inner diameter: 116 mm.
  • Thickness: 5.1 mm.
  • Braking surface width: 43 mm.
  • Number of holes: 4.
  • Bolt-hole centre distance: 8.5 mm.
  • Mounting-hole distance: 136 mm.
  • Recommended brake pads: Braking CM46 or CM44.
