Braking BY9009R W-FIX Batfly 248 Right Rear Brake Disc for Can-Am Maverick MAX X3 / Turbo / 900 R (17-21), Maverick X3 / Turbo /

Braking BY9009R W-FIX Batfly Ø248mm Right Rear Brake Disc for Various models of Can-Am

BY9009R

New product

Important: This reference corresponds to a single side. If your motorcycle is equipped with discs on both sides, you will find the disc for the opposite side in the related products at the bottom of the product page.

More details

152,58 €
Tax incl.

Data sheet

SideRight
Brand:Braking

More info

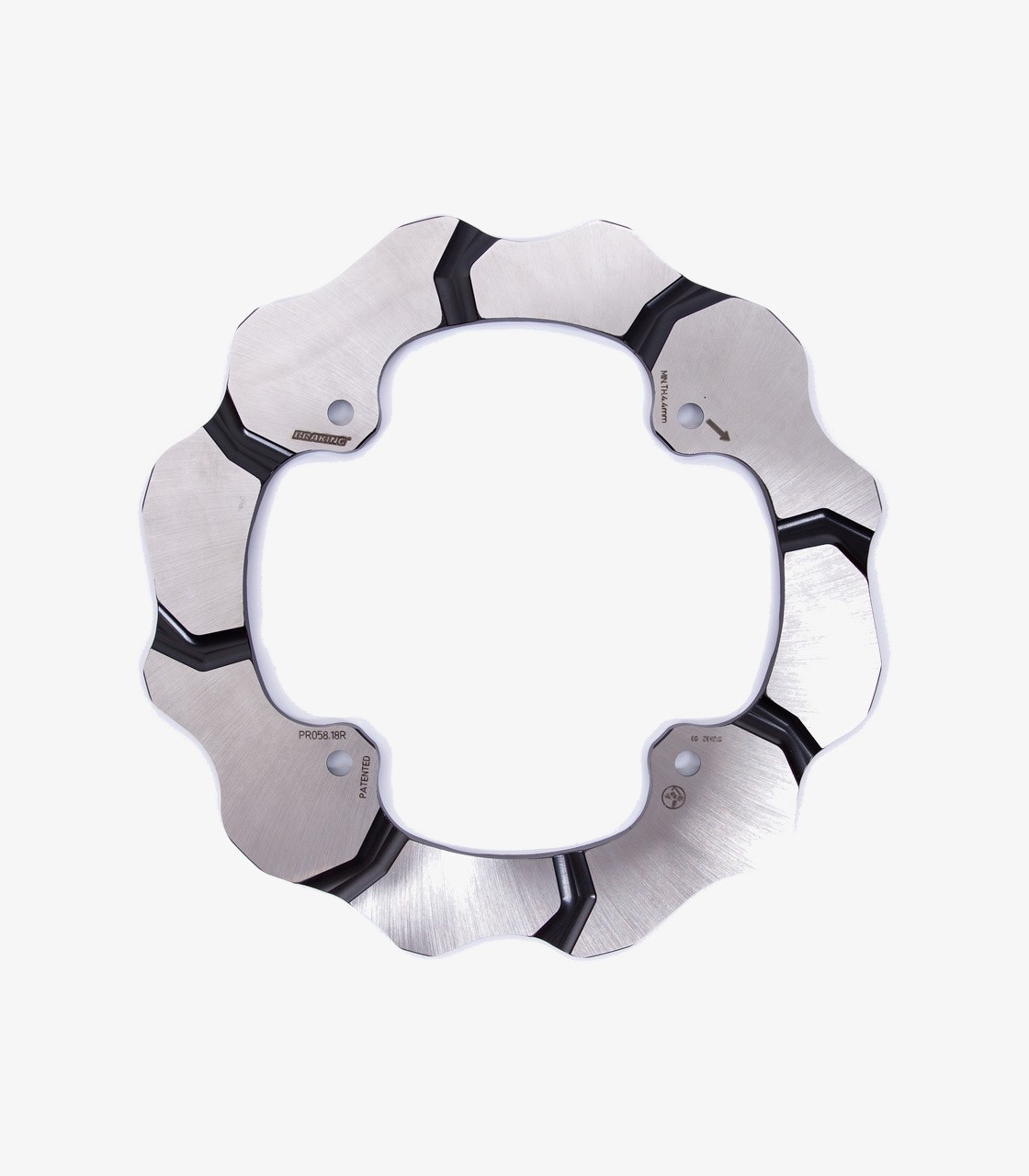

Braking brake disc BY9009R is intended for the rear brake on the right-hand side of Can-Am motorcycles. Its W-FIX Batfly design uses dedicated grooves and a Wave outline to maintain consistent response in demanding conditions.

  • Mounting position: rear.
  • Side: right.
  • Design: W-FIX Batfly.
  • Outer diameter: 248 mm.
  • Inner diameter: 136 mm.
  • Thickness: 5.1 mm.
  • Braking surface width: 36 mm.
  • Number of holes: 4.
  • Bolt-hole centre distance: 8.5 mm.
  • Mounting-hole distance: 160 mm.
  • Recommended brake pads: Braking CM46 or CM44.
