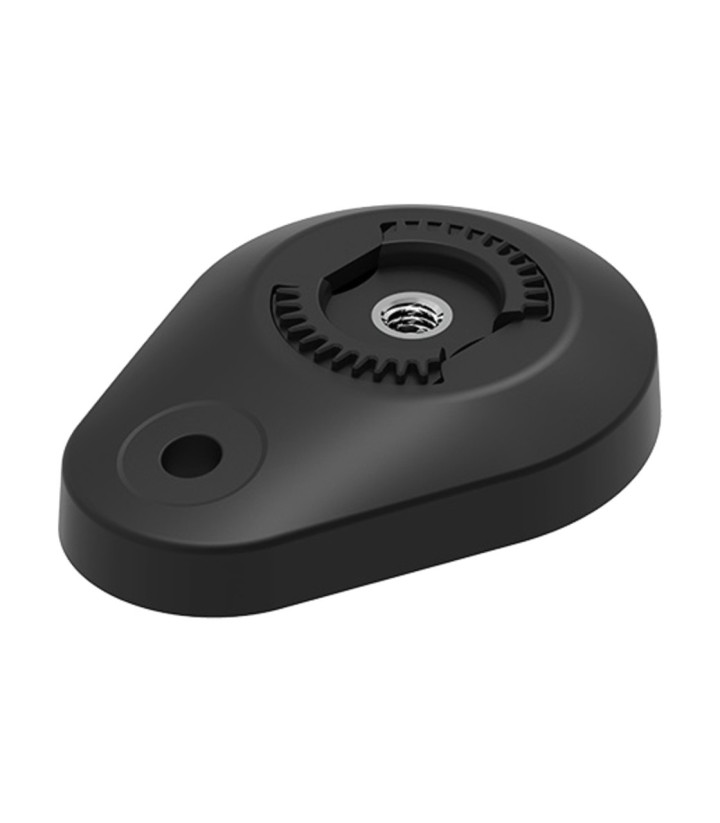

Quad Lock 360 Concealed Base with Cable Pass-Through

The Quad Lock 360 concealed cable pass-through base lets you fit a phone mount to a flat surface while routing the cable for a 12 V–24 V waterproof wireless charging head. Its low-profile design keeps the installation unobtrusive.

A cover hides the mounting screws and includes a TPU grommet for the charging cable.

• Fixing: two-hole base for M5 or 10G (gauge 10) screws.
• Compatibility: accepts all Quad Lock 360 arms and heads.
• Base material: glass-filled nylon.
• Hardware: 316 stainless steel.
• Dimensions: 55 × 40 × 12 mm.
• Cable restriction: USB-A to USB-C, USB-C to USB-C and SAE cables, as well as cables for the motorcycle USB charger and 12 V Smart Adaptor, cannot pass through the grommet.

It is not suitable for curved mounting surfaces. To use it with the weatherproof USB wireless charger, you need a motorcycle spacer, an M5 × 45 screw and a right-angle USB-C cable.
