Quad Lock Brake or Clutch Mount

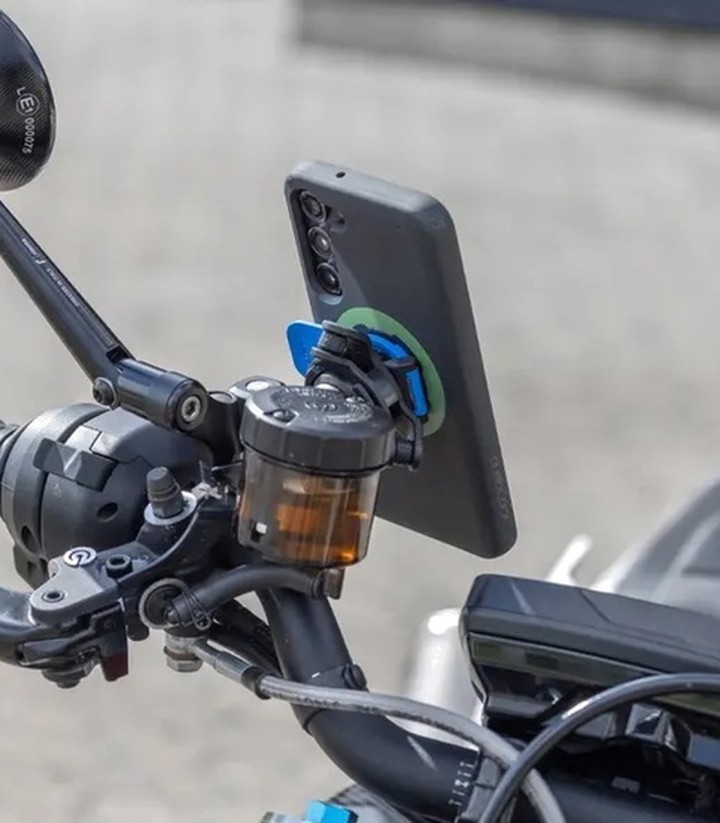

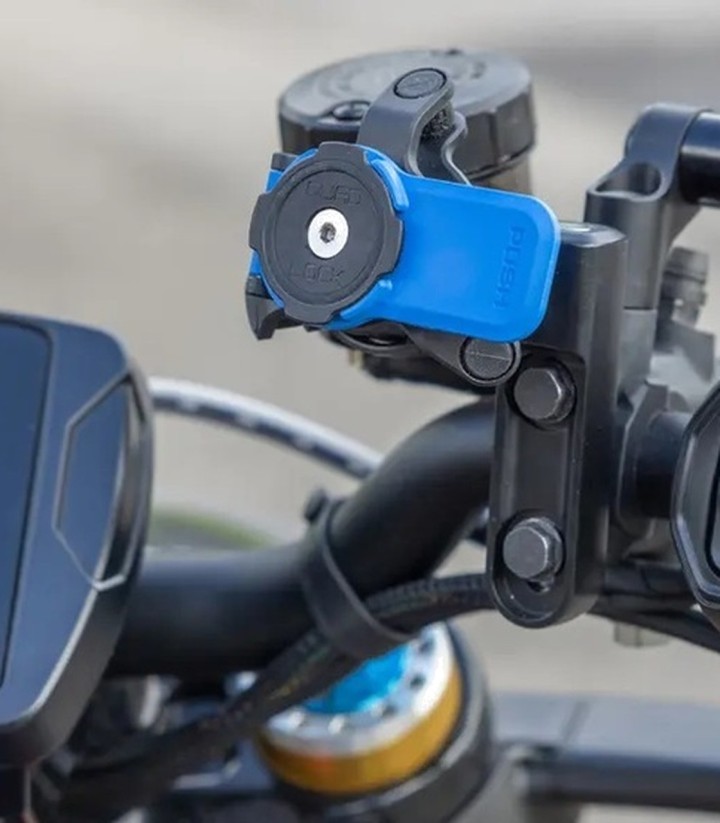

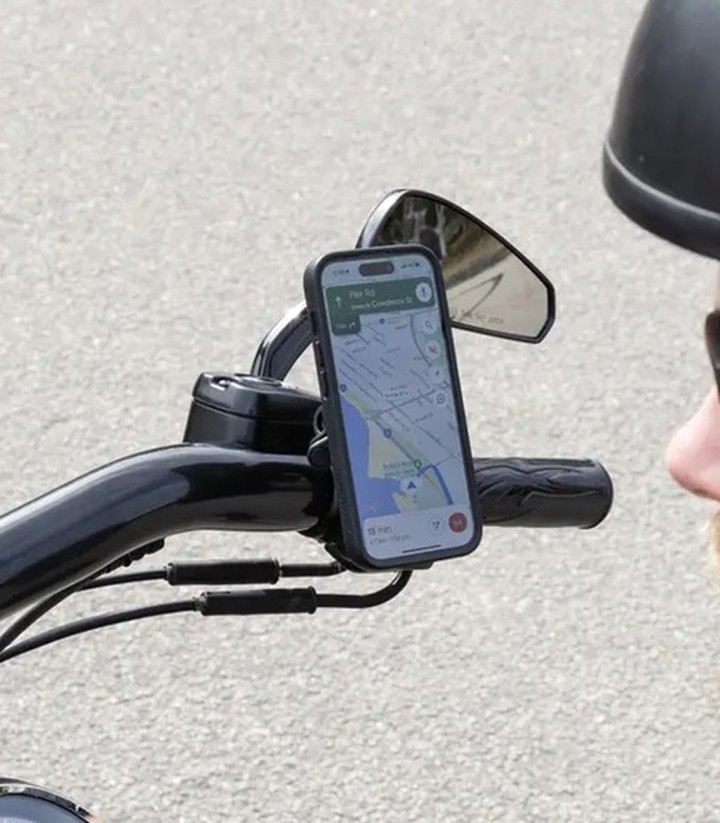

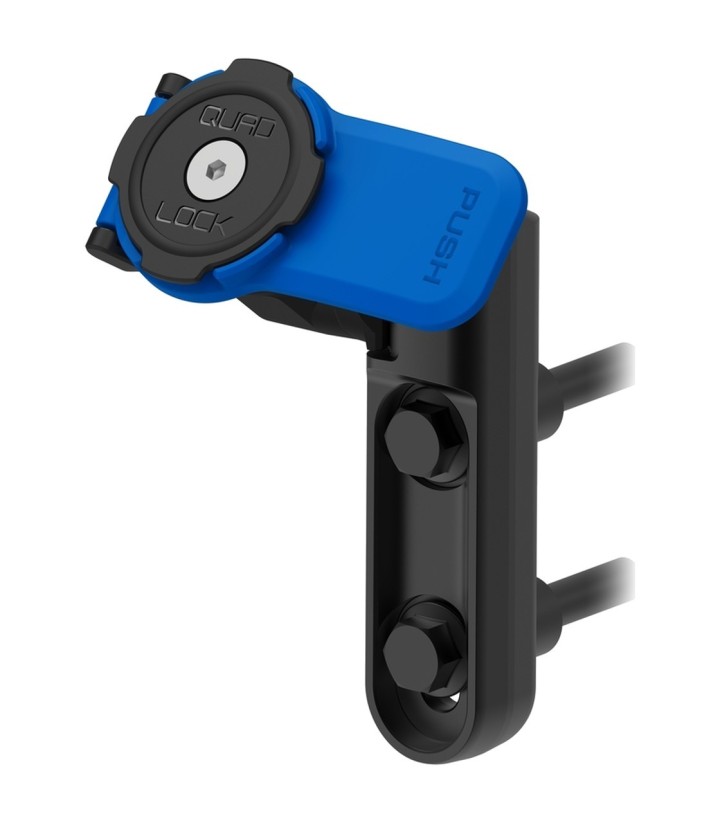

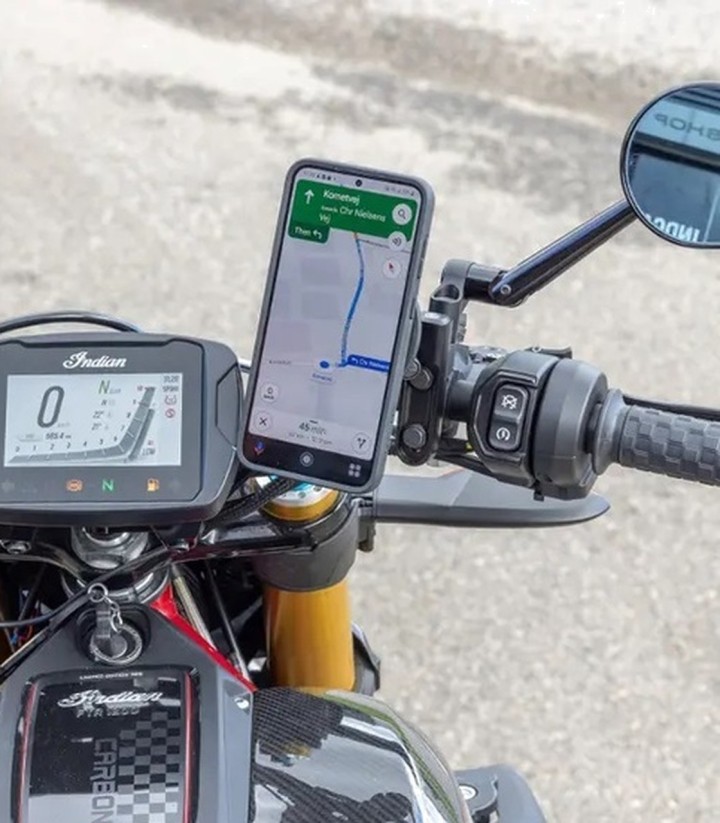

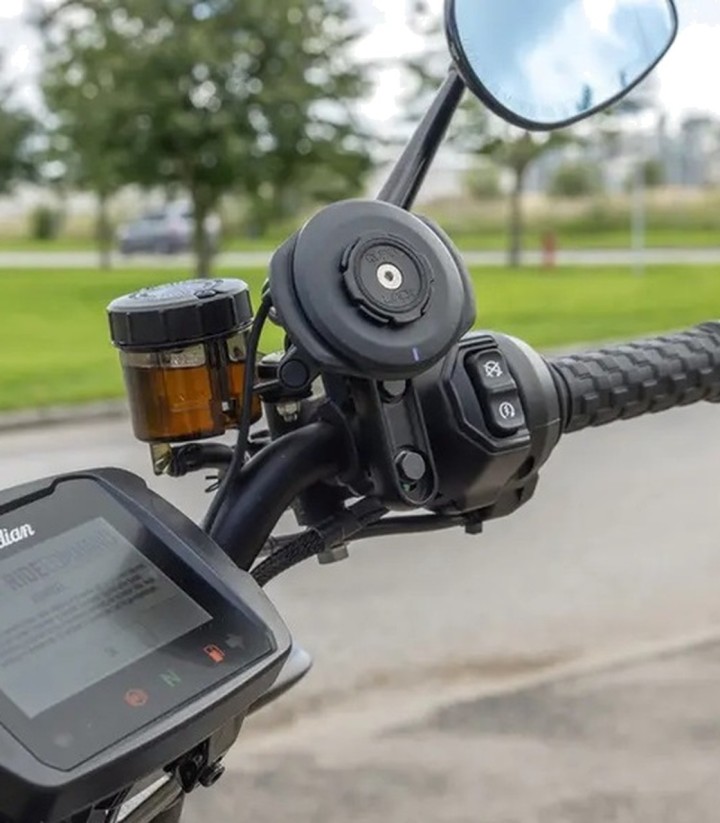

The Quad Lock brake or clutch master cylinder phone mount gives you a place to secure your smartphone on your motorcycle using the lever perch. Its patented dual-stage locking head holds the phone without straps, bands or magnets.

The head sits inboard to keep the handlebar controls accessible. It rotates through 180° and allows finer tilt adjustment, so you can position the screen for a comfortable view.

• Fitment: attaches to a two-hole lever perch with 32–38 mm hole spacing, on either the left or right side.
• Body: glass-filled nylon.
• Base: anodised die-cast aluminium.
• Hardware: stainless steel pivot pins and threaded inserts.
• Bolts supplied: two M6 × 45 and two UNC 1/4″-20 × 1.75″ high-tensile steel serrated flange bolts with micro-encapsulated thread locker.
• Also included: two spacers and a combined 3 mm/4 mm Allen key.
• Dimensions and weight: 63 × 45 × 11 mm and 191 g.

Before fitting, check that your motorcycle’s brake or clutch lever perch accepts this type of mount.
