SW-MOTECH 45/37 L TRAX ADV Side Cases with Carrier for Kawasaki KLR 650 (22-26) Black KFT.08.990.70000/B

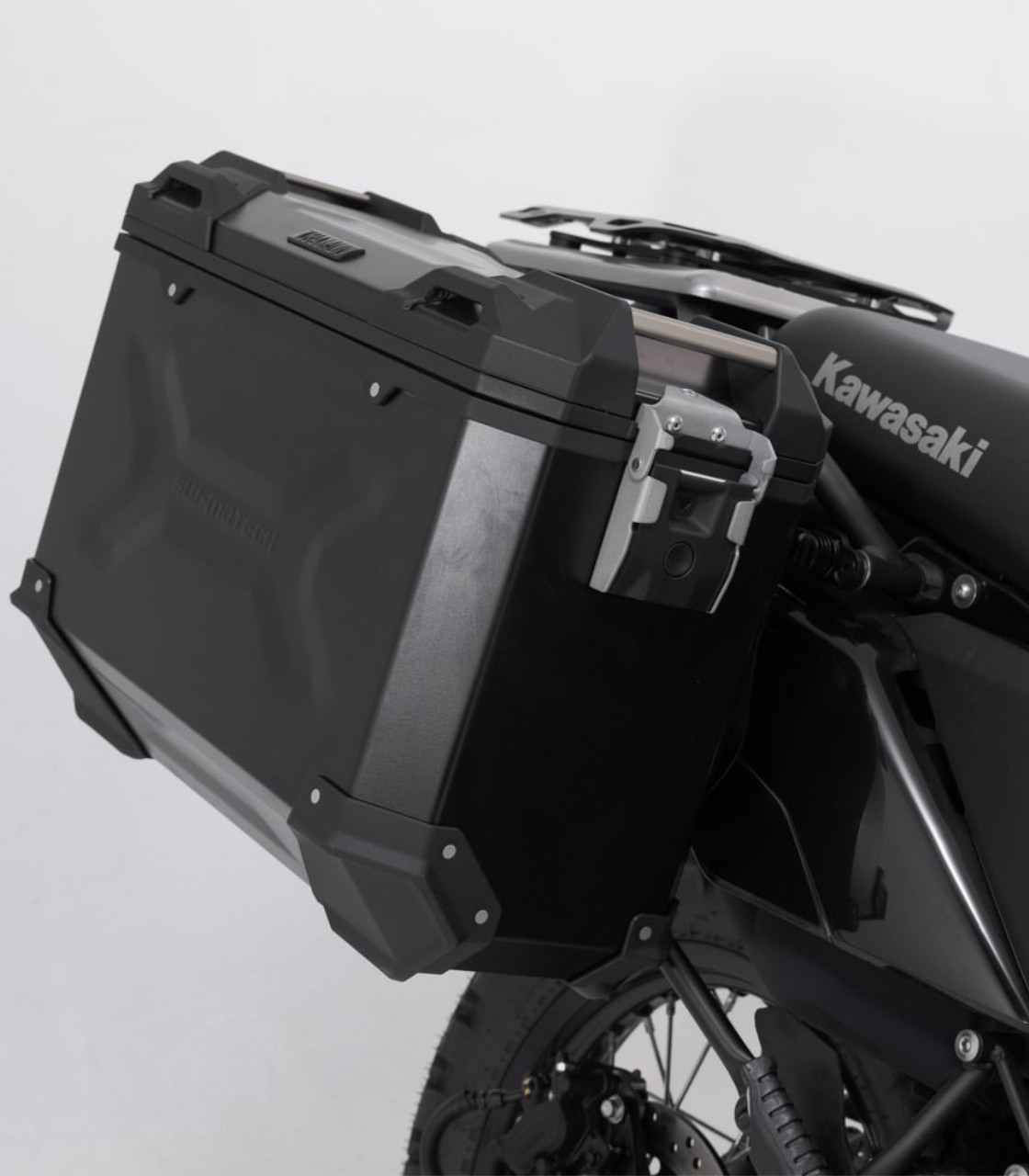

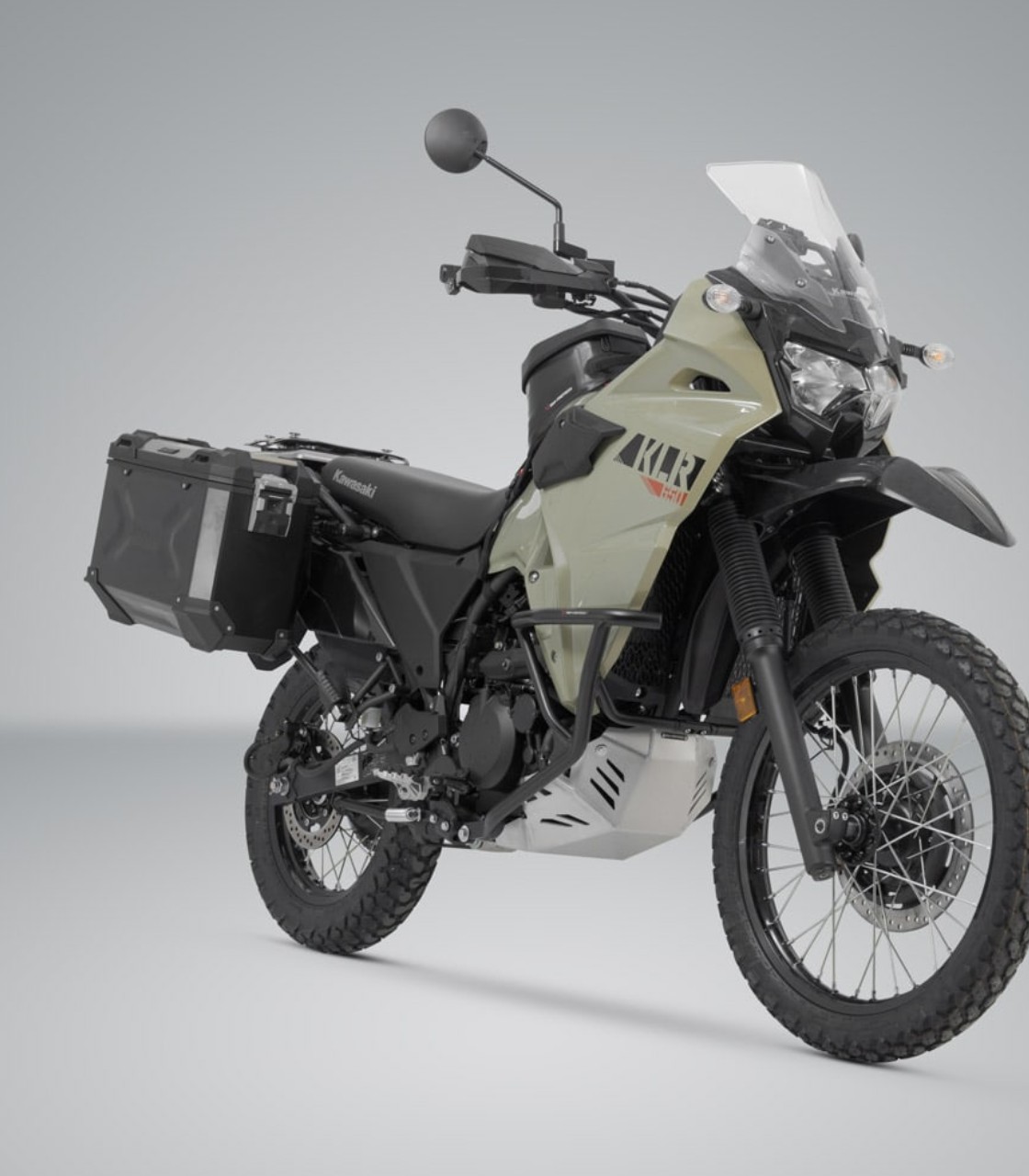

The SW-MOTECH TRAX ADV side case system gives the 2022 Kawasaki KLR 650 and 2023 KLR 650 S room for luggage on the road. It combines two waterproof aluminium cases with model-specific PRO side carriers.

The carriers follow the shape of the rear of the bike and its exhaust. Welds and rivets help keep moisture out of the cases, while an integrated membrane makes the lids easier to open when pressure or temperature changes.

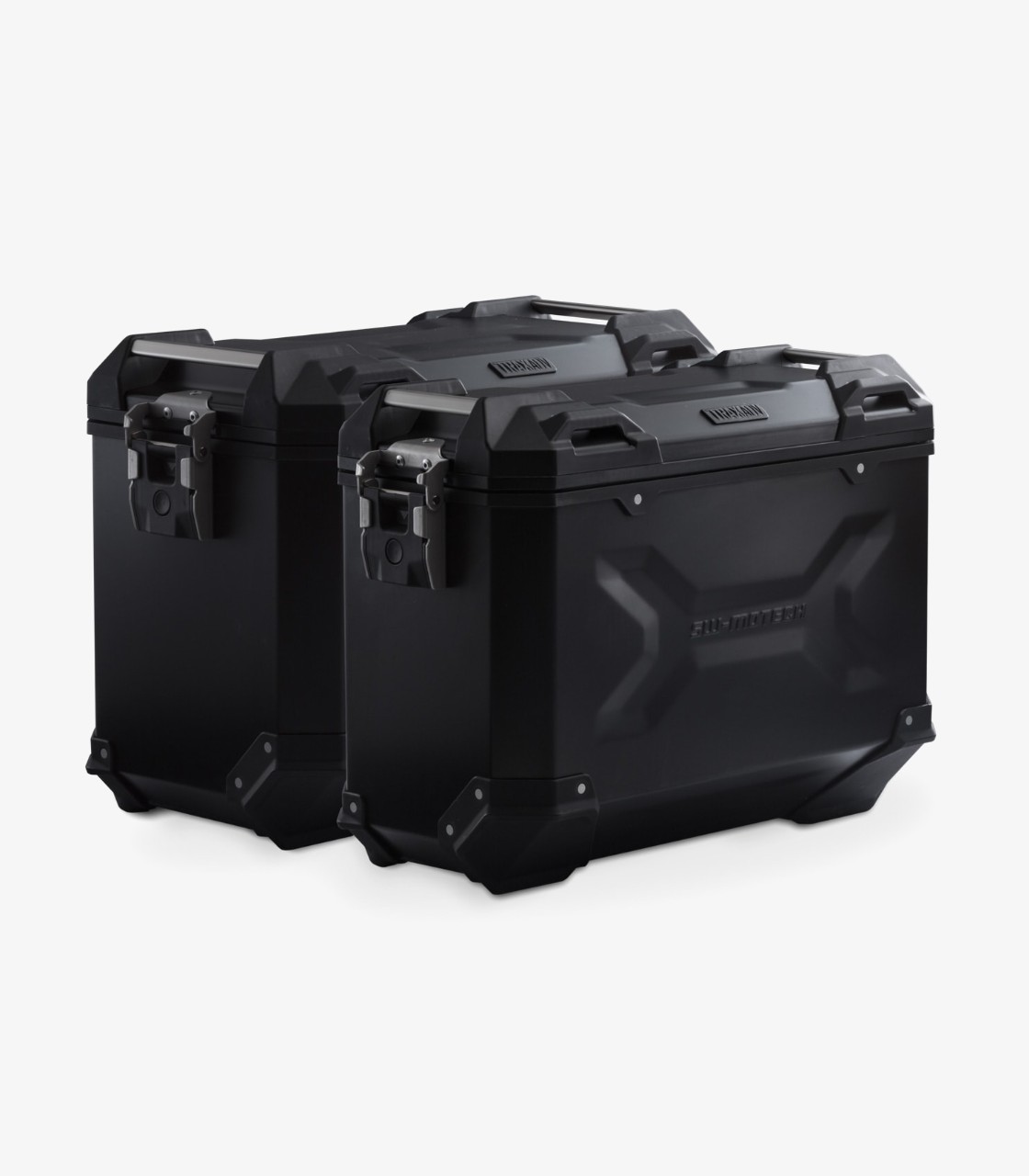

• Capacity: 45 l on the left and 37 l on the right, giving 82 l in total.
• Construction: 1.5 mm aluminium with pressed contours and welded edges for stability.

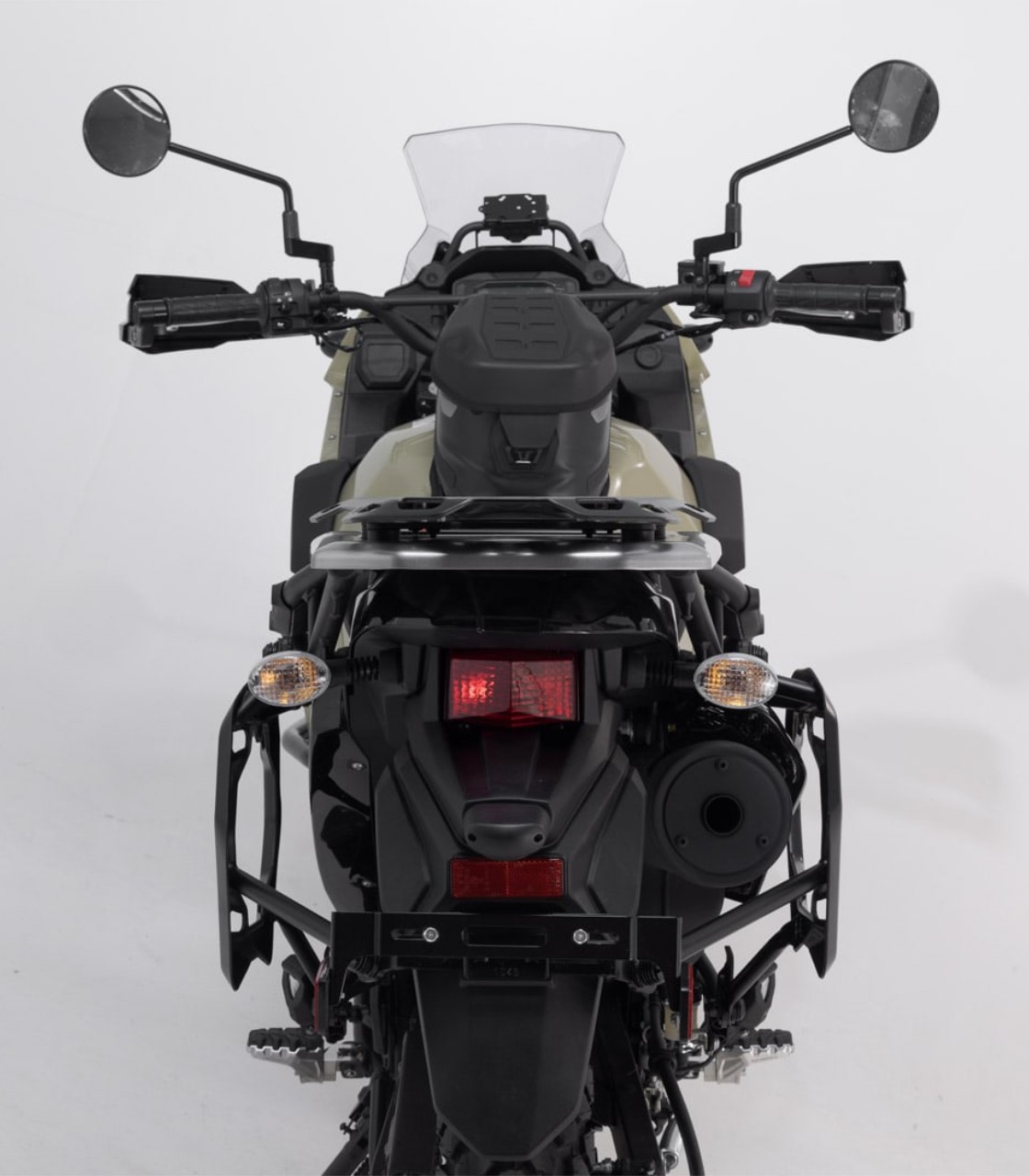

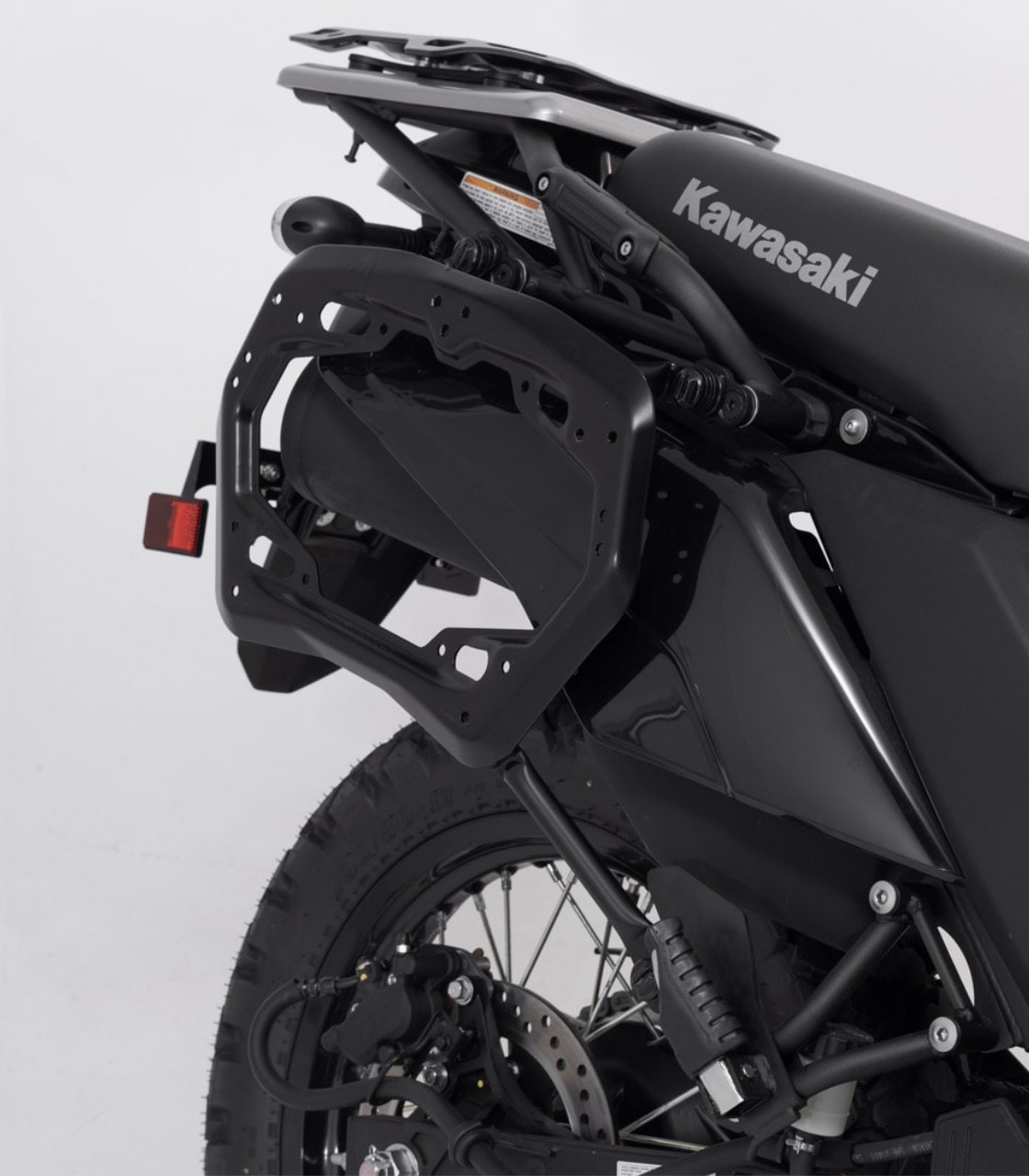

• PRO carriers: 2.5 mm steel, fitted at the bike’s original mounting points and removable using quick-release fasteners.

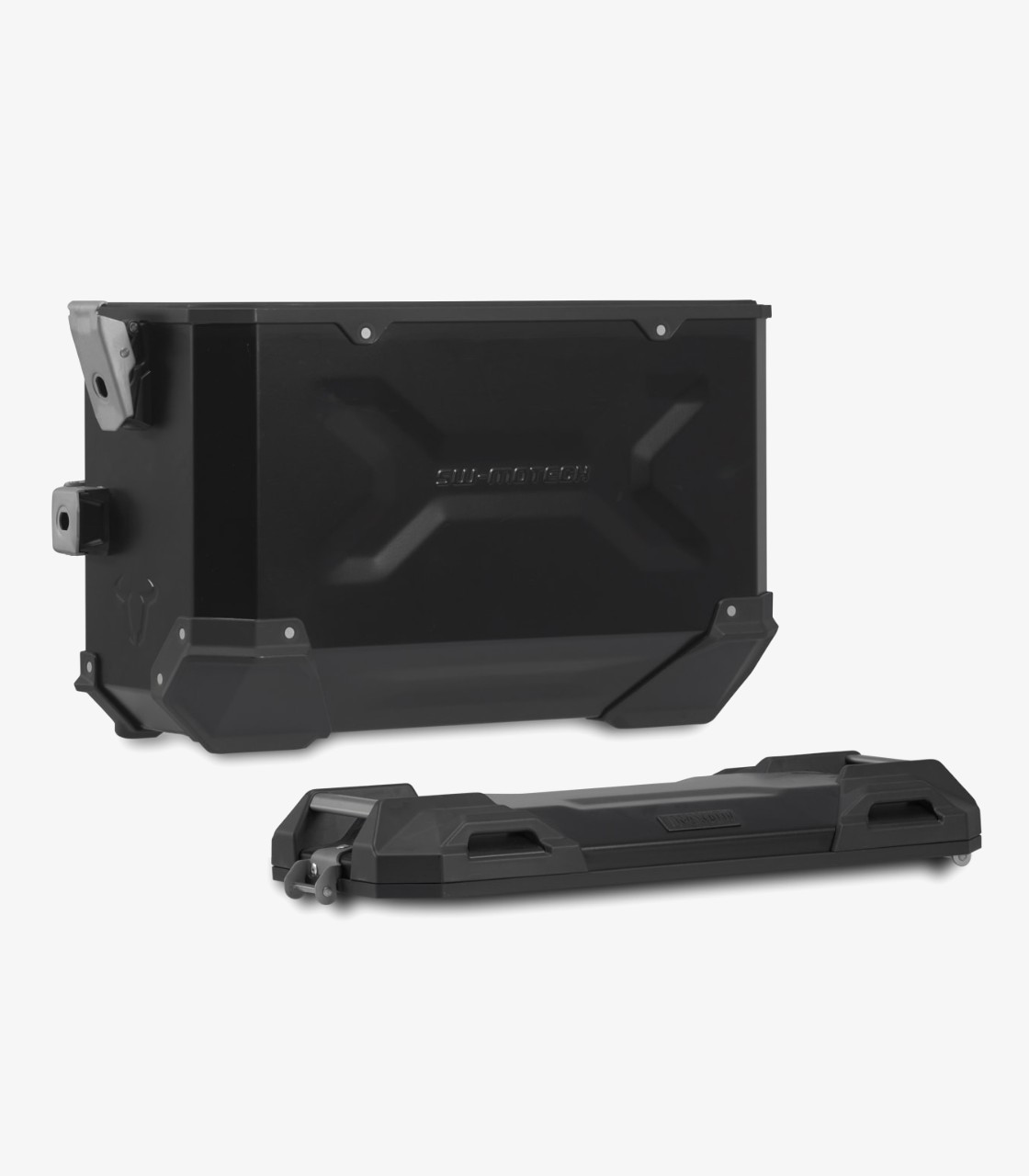

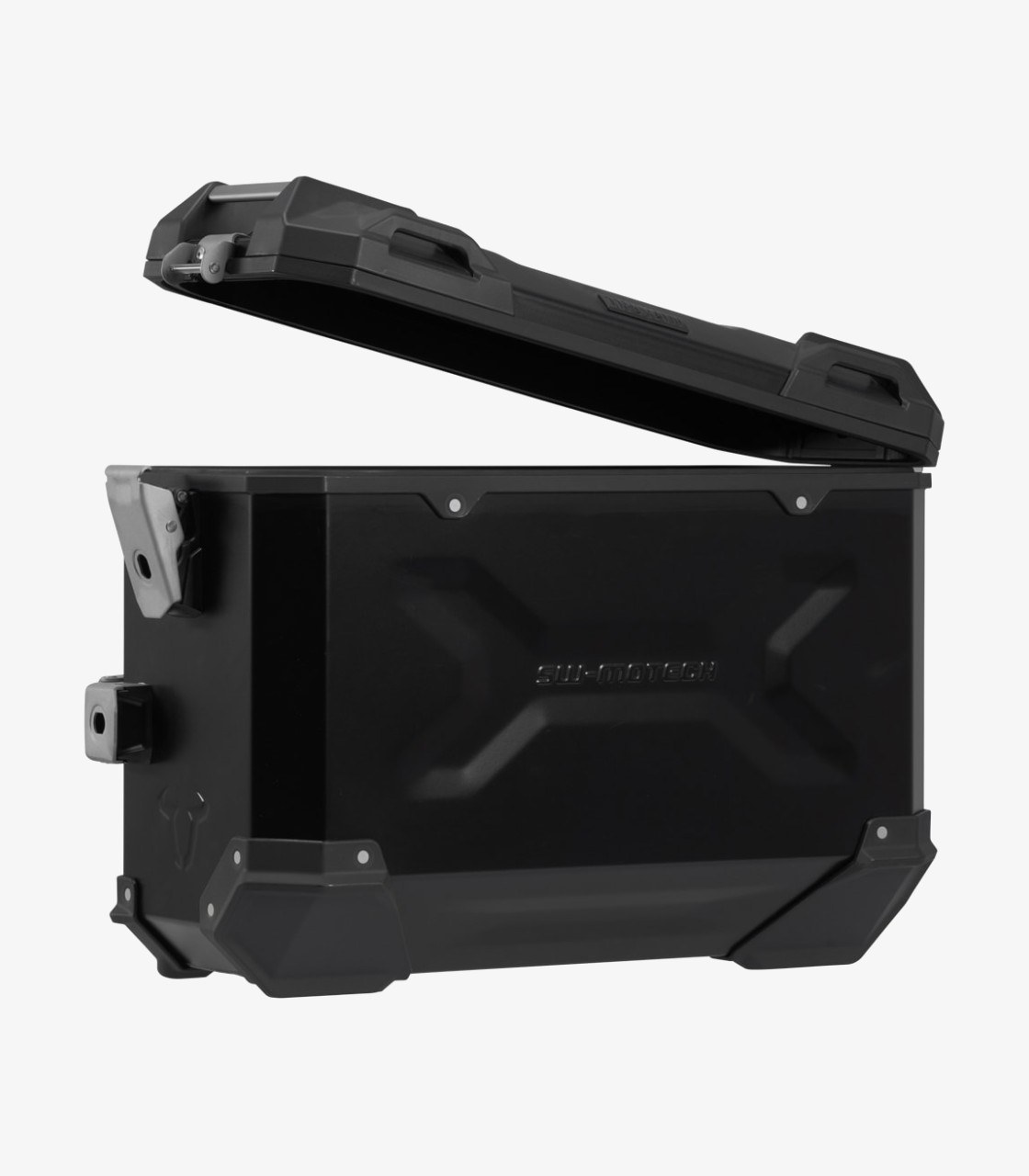

• Lids: fully removable even when the cases are packed, with four lashing points on each lid.
• Cornering clearance: bevelled edges provide ground clearance, while glass-fibre-reinforced plastic protects the corners.
• Locks: nine locks operated by the same key, plus an anti-theft system for the PRO carriers.

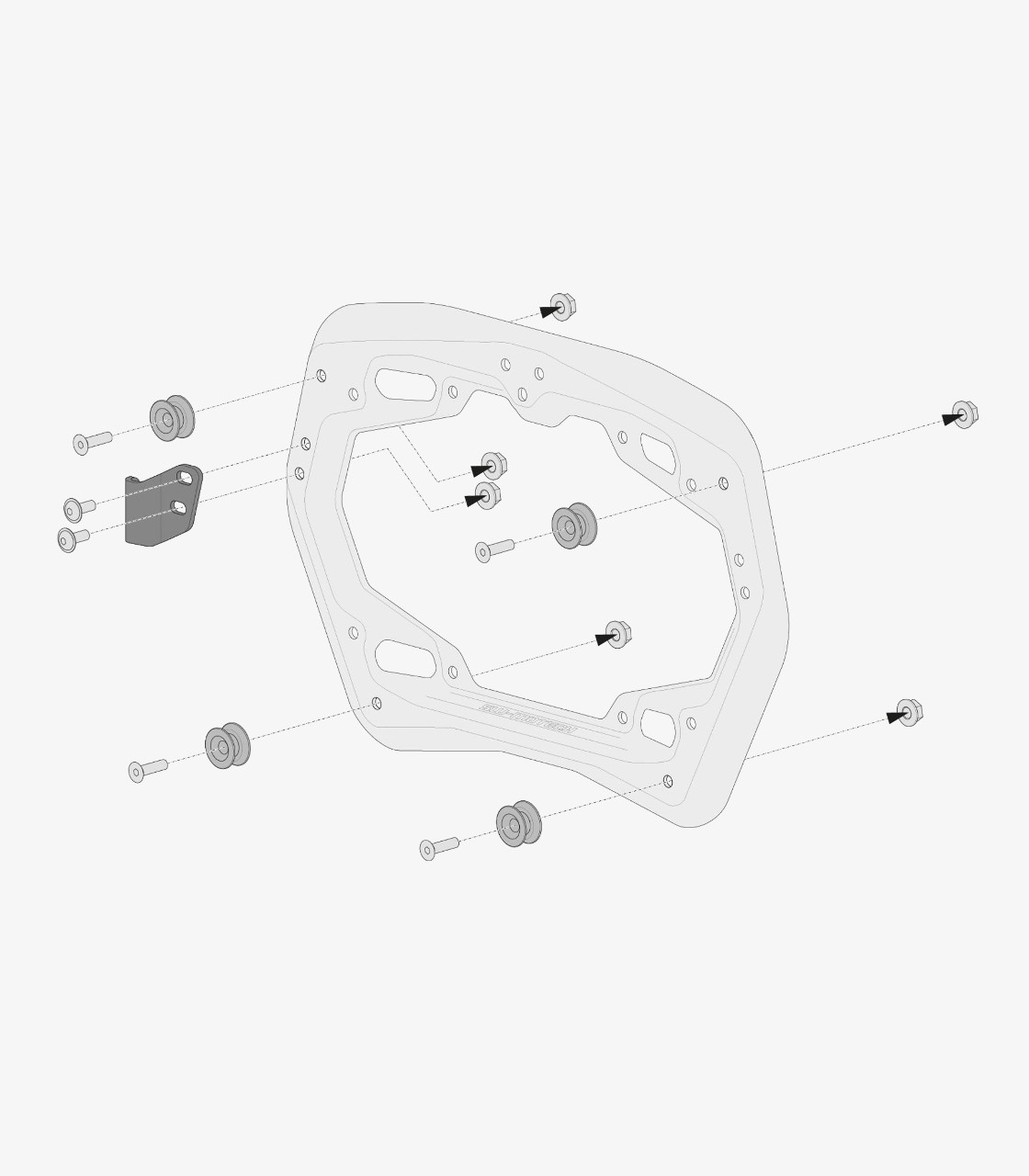

• Included equipment: adapter kits for both sides, four lid opening limiters, two storage bags, a multitool keyring and mounting hardware.

Set up for both longer tours and shorter rides, this system includes the parts needed to fit the cases to their carriers.
