Braking EP146L Epta W-FLO 330 Left Front Brake Disc for Various models of Ducati

Braking EP146L Epta W-FLO Ø330mm Left Front Brake Disc for Various models of Ducati

EP146L

New product

Important: This reference corresponds to a single side. If your motorcycle is equipped with discs on both sides, you will find the disc for the opposite side in the related products at the bottom of the product page.

More details

405,47 €
Tax incl.

Data sheet

SideLeft
Brand:Braking

More info

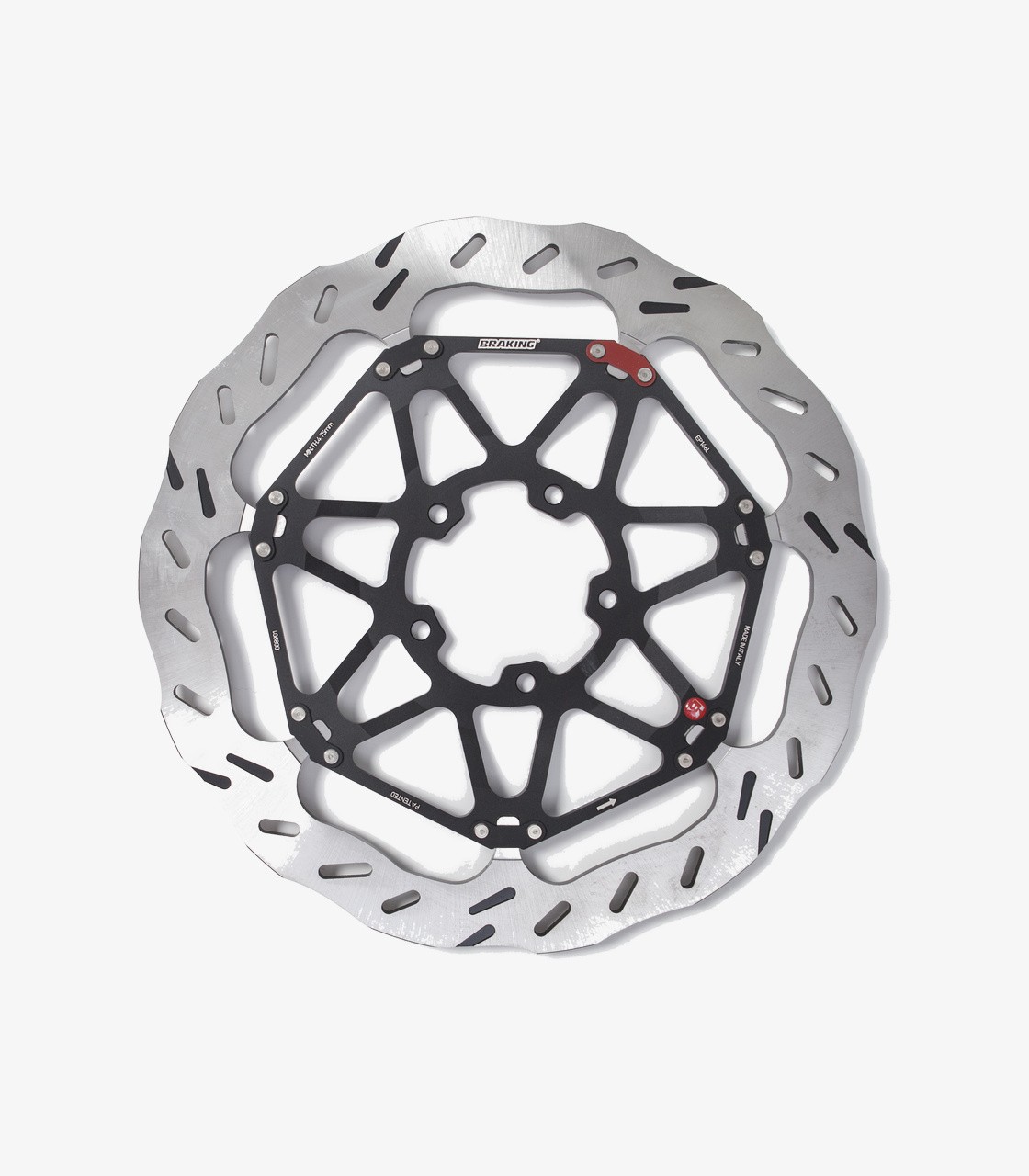

Braking disc EP146L uses the Epta W-FLO design and fits the front brake on the left-hand side of Ducati motorcycles. Its Epta construction pairs a stainless-steel rotor with an AL7075 aluminium carrier and controlled float, supporting heat dissipation and direct load transfer.

  • Mounting position: front.
  • Side: left.
  • Design: Epta W-FLO.
  • Outer diameter: 330 mm.
  • Inner diameter: 72 mm.
  • Thickness: 5.6 mm.
  • Braking surface width: 34 mm.
  • Number of holes: 5.
  • Bolt-hole centre distance: 8.5 mm.
  • Mounting-hole distance: 90 mm.
  • Recommended brake pads: Braking CM46 or CM44.
