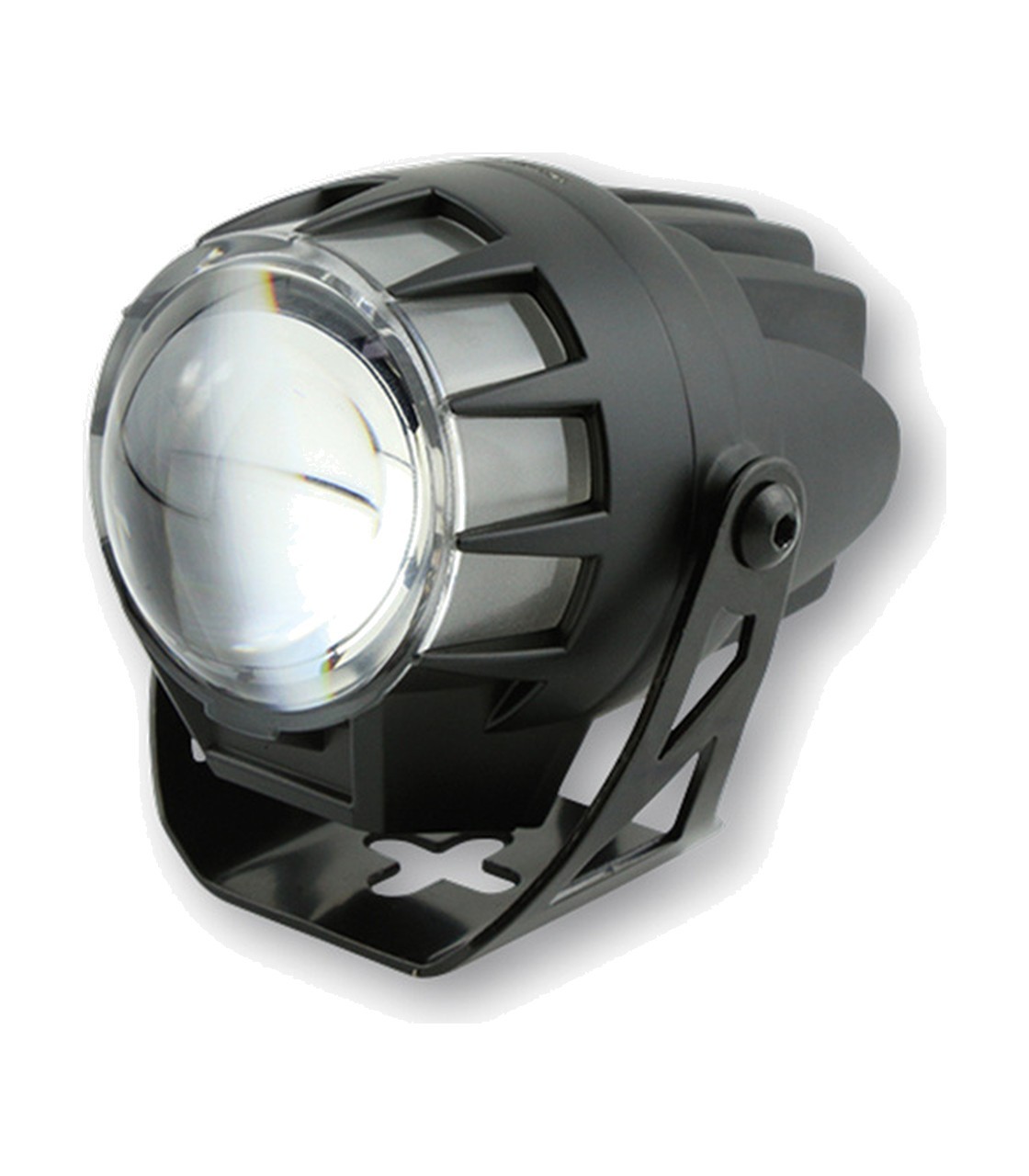

Highsider LED Headlight Dual-Stream 45 mm in Black

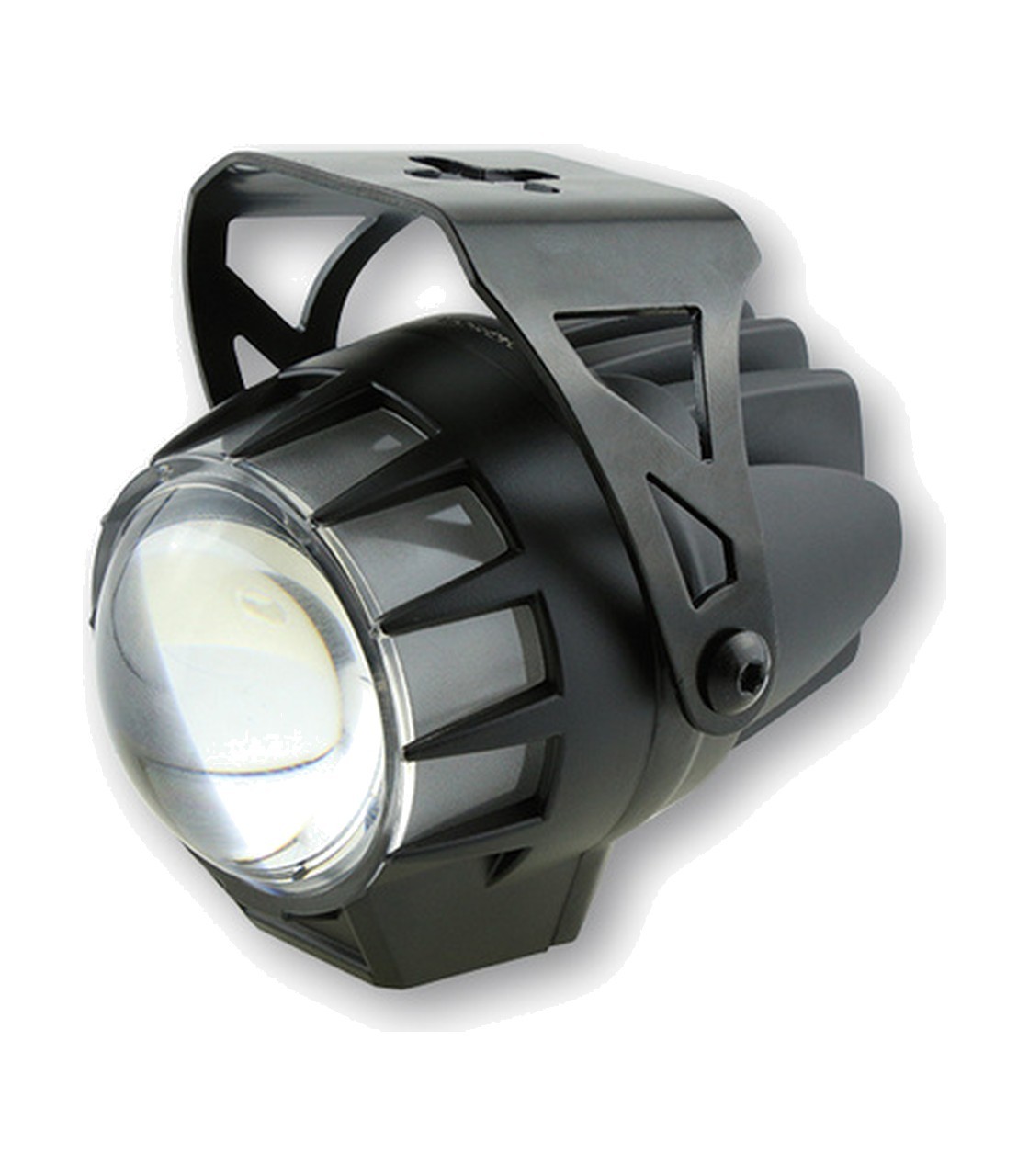

The HIGHSIDER pro Dual-Stream 45 mm LED headlight combines dipped beam, main beam and a position light in a compact unit with a black housing and round lens. A sturdy bracket completes the design.

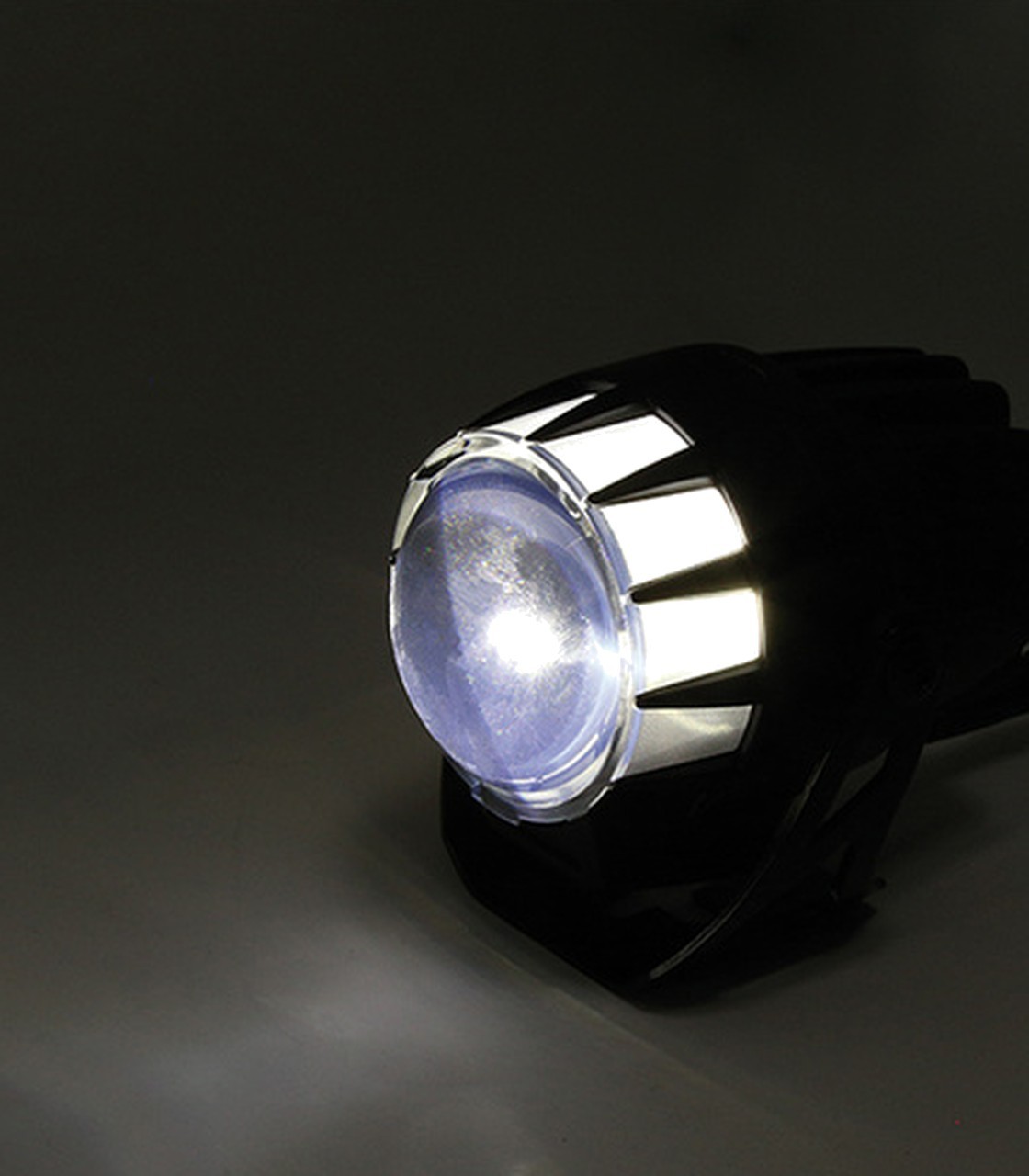

The position light forms an illuminated ring around the lens. A mechanical shutter switches between dipped and main beam.

• Housing: made from aluminium.
• Mounting holes: spaced 67 mm apart.
• Dipped beam: 12 V / 12 W and 739.3 lm.
• Main beam: 12 V / 19 W and 739.3 lm.
• Wiring: brown for the position light, white for dipped beam, blue for main beam and green for earth (-). Connect the white wire to the ignition positive (+).
• Approval: E-approved.

Before fitting it to your motorcycle, check the available space and wiring connections.
