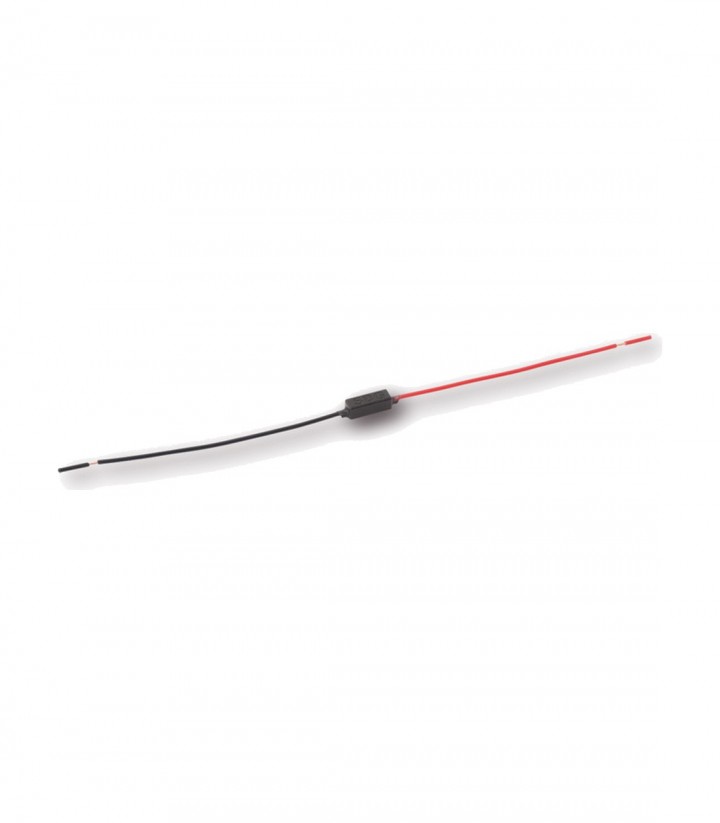

Highsider Turn Signal Relay PW-Nano

The HIGHSIDER pro PW-Nano indicator relay lets you convert your motorcycle to LED indicators while maintaining a constant flash rate regardless of load. It also works with conventional 10 W or 21 W indicator bulbs.

Its compact design makes it easier to fit inside many steering tubes or frames. It is not suitable for push-button switches or indicator systems with a hazard-warning function or other additional functions.

• Length: 15 mm.
• Supply voltage: 8 to 18 V.
• Load range: 0.1 to 42 W per side.
• Connection: two wires; connect the red wire to 12 V (+) at terminal 49 and the black wire to earth (-) in series with the indicator switch via terminal 49a.
• Recommended protection: fit a 10 A fuse upstream of the relay.

On motorcycles with the positive terminal connected to the frame, as on some classic British bikes, connect the black wire to battery negative and the red wire to the switch.
