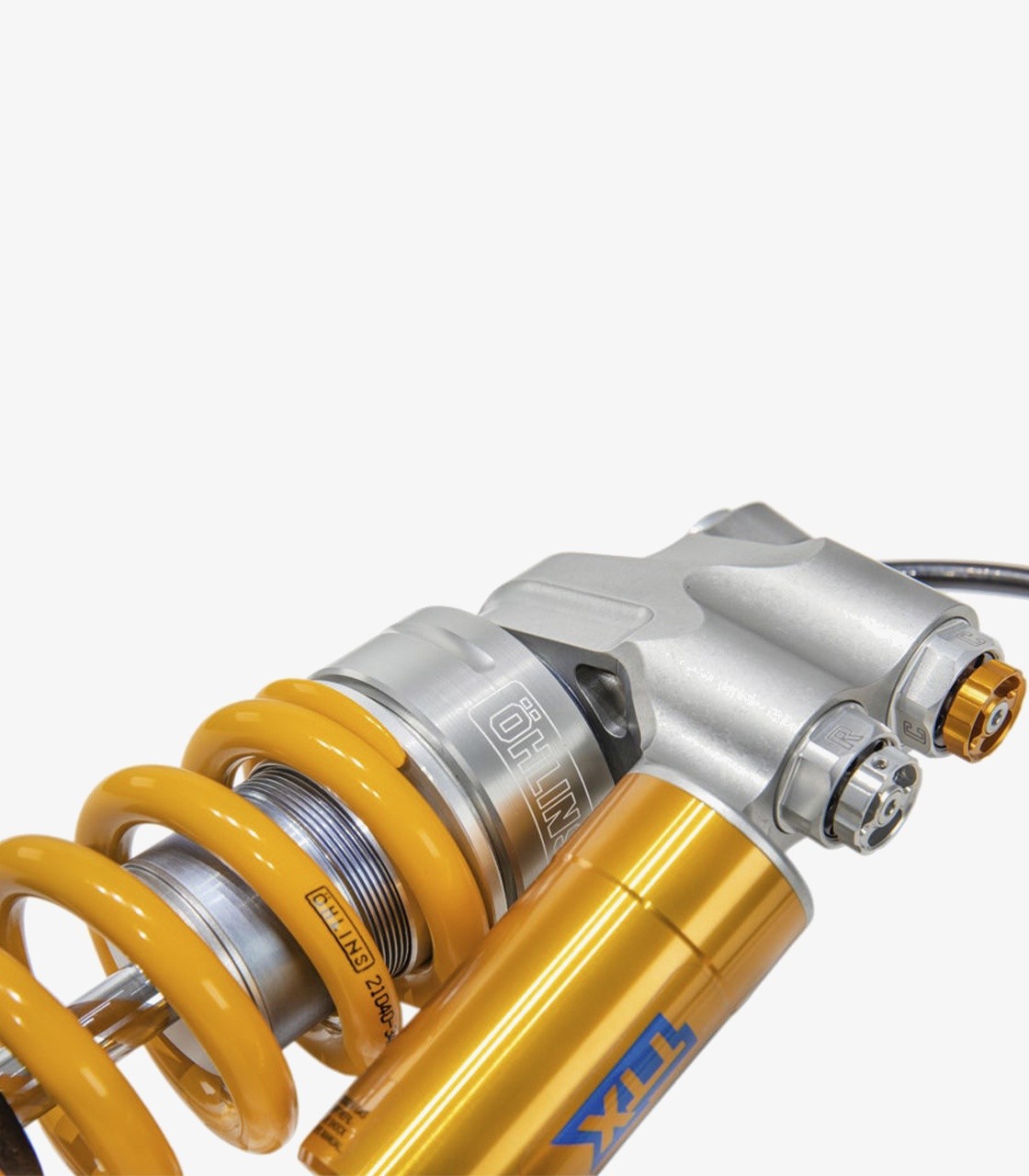

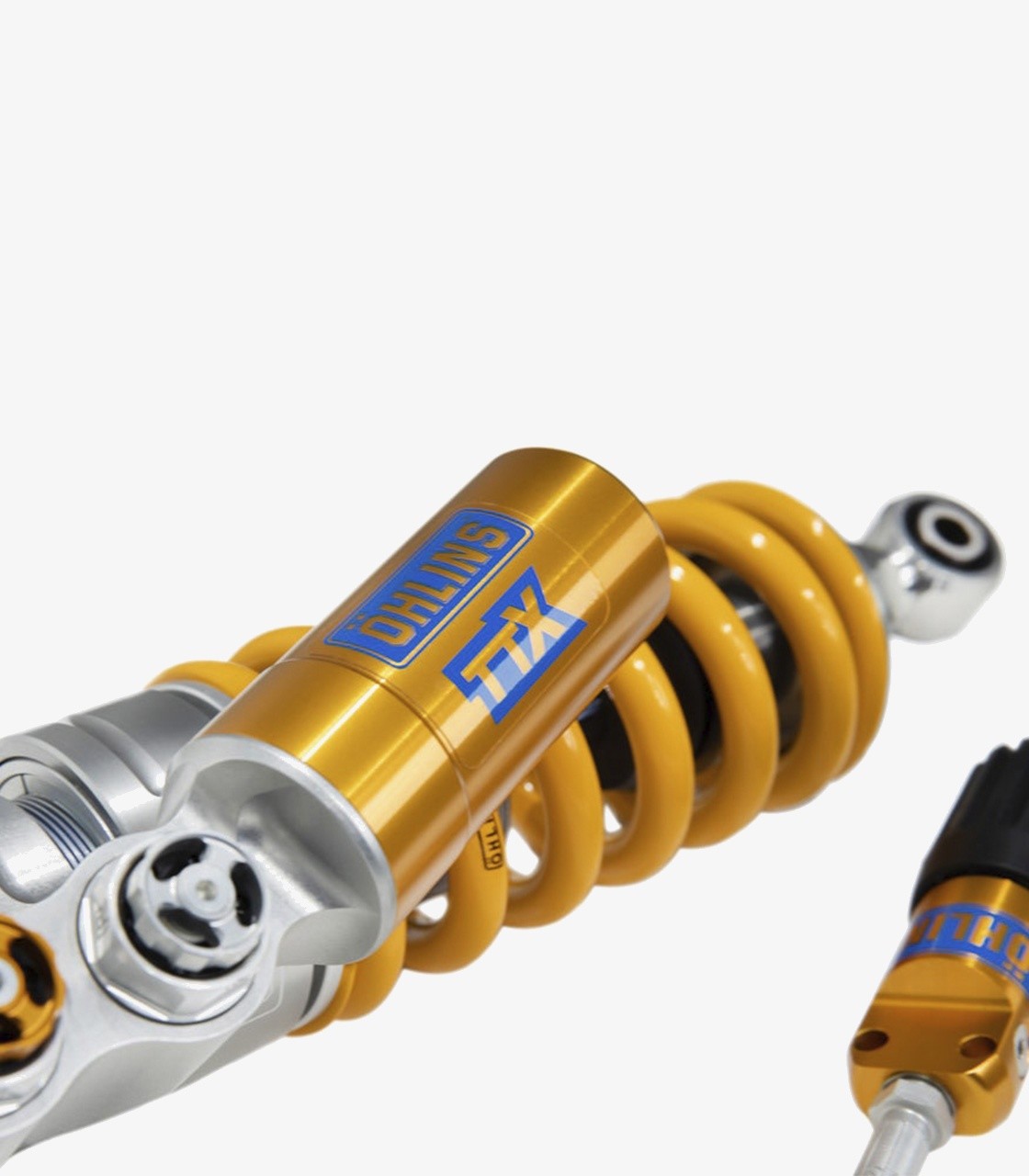

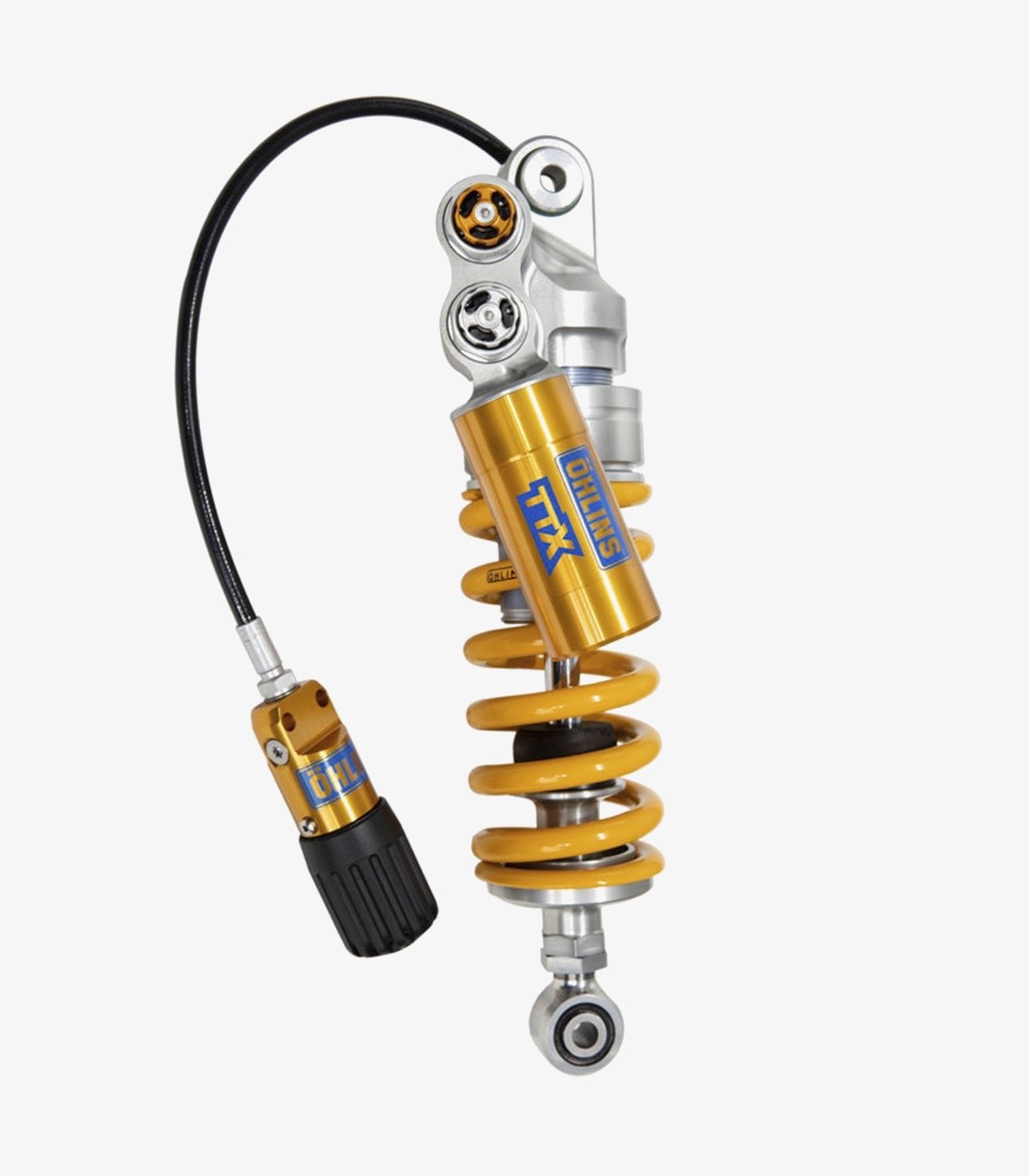

Öhlins Rear Shock for Yamaha YZF-R9 (24-26) YA 965

The Öhlins TTX GP rear shock absorber for the Yamaha YZF-R9 is built to improve control and stability on track. Drawing on MotoGP experience, it lets you tailor the suspension to your riding style and circuit conditions.

TTX technology keeps internal nitrogen pressure balanced to prevent cavitation and deliver consistent damping, even under demanding conditions.

• Damping assembly: a 36 mm piston and piggyback reservoir, which improves heat dissipation.
• Compression and rebound: independently adjustable, with a wide adjustment range for each.
• Spring preload: hydraulic adjustment via an integrated hose makes quick changes easier.
• Adjustable length: allows precise adaptation to the chassis and your riding preferences.
• Precision components: CNC machining and hard anodising support durability.
• Low friction: the shaft and seal design improves sensitivity and reduces wear.
• Reinforced tubes: reduce assembly flex, improving stability and chassis feedback during acceleration and through high-speed corners.

Installation and set-up by a specialist professional are recommended. The shock is fully serviceable and repairable, and is designed for periodic maintenance.
