SW-MOTECH EVO Fog Lights NSW.01.919.51000/B

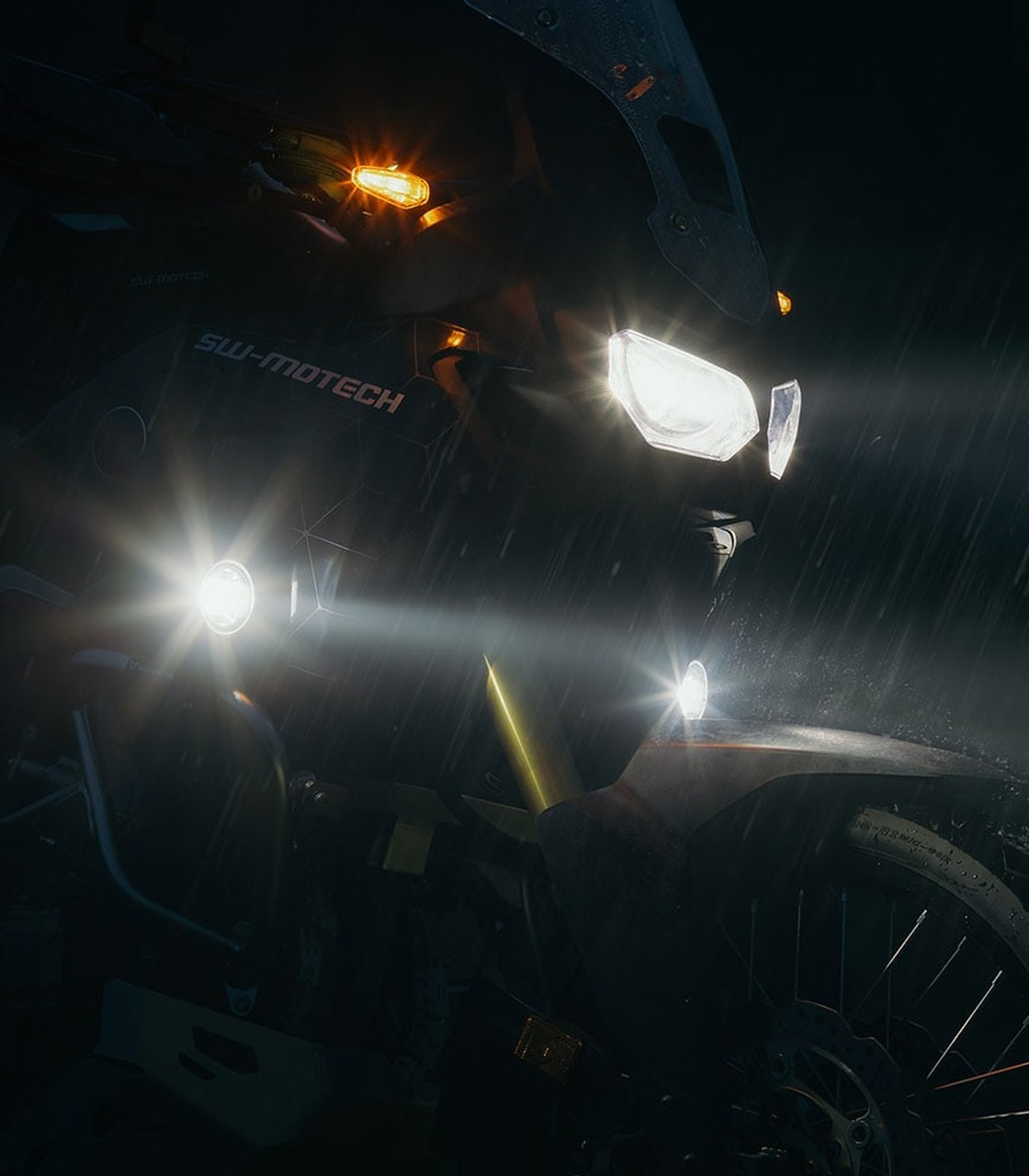

The SW-MOTECH EVO fog light kit for the Honda CB500X from 2018 and NX500 from 2023 helps you see and be seen in fog or poor weather. Its wide light spread improves visibility, while the kit brings together the parts needed to fit the lights to your bike.

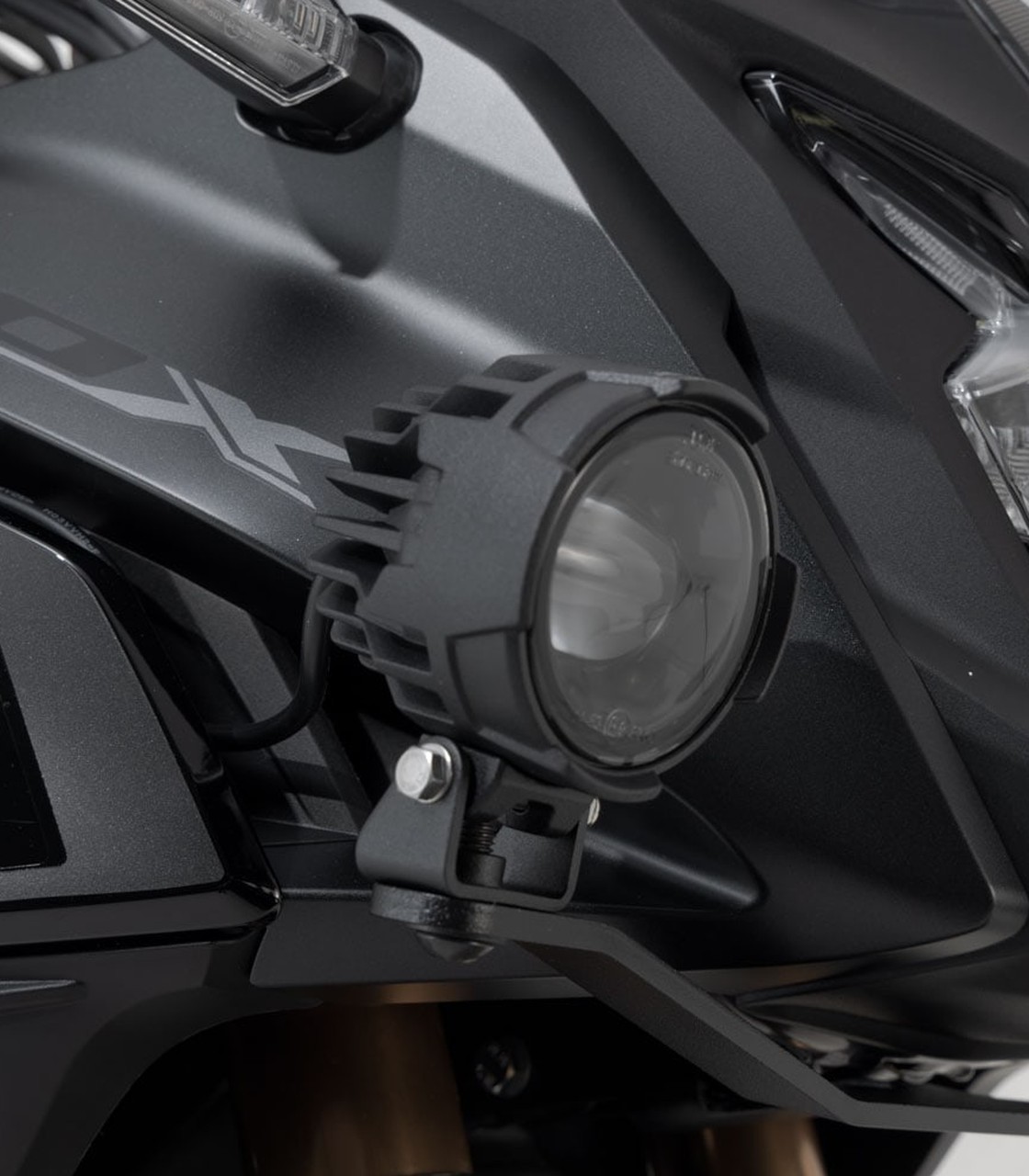

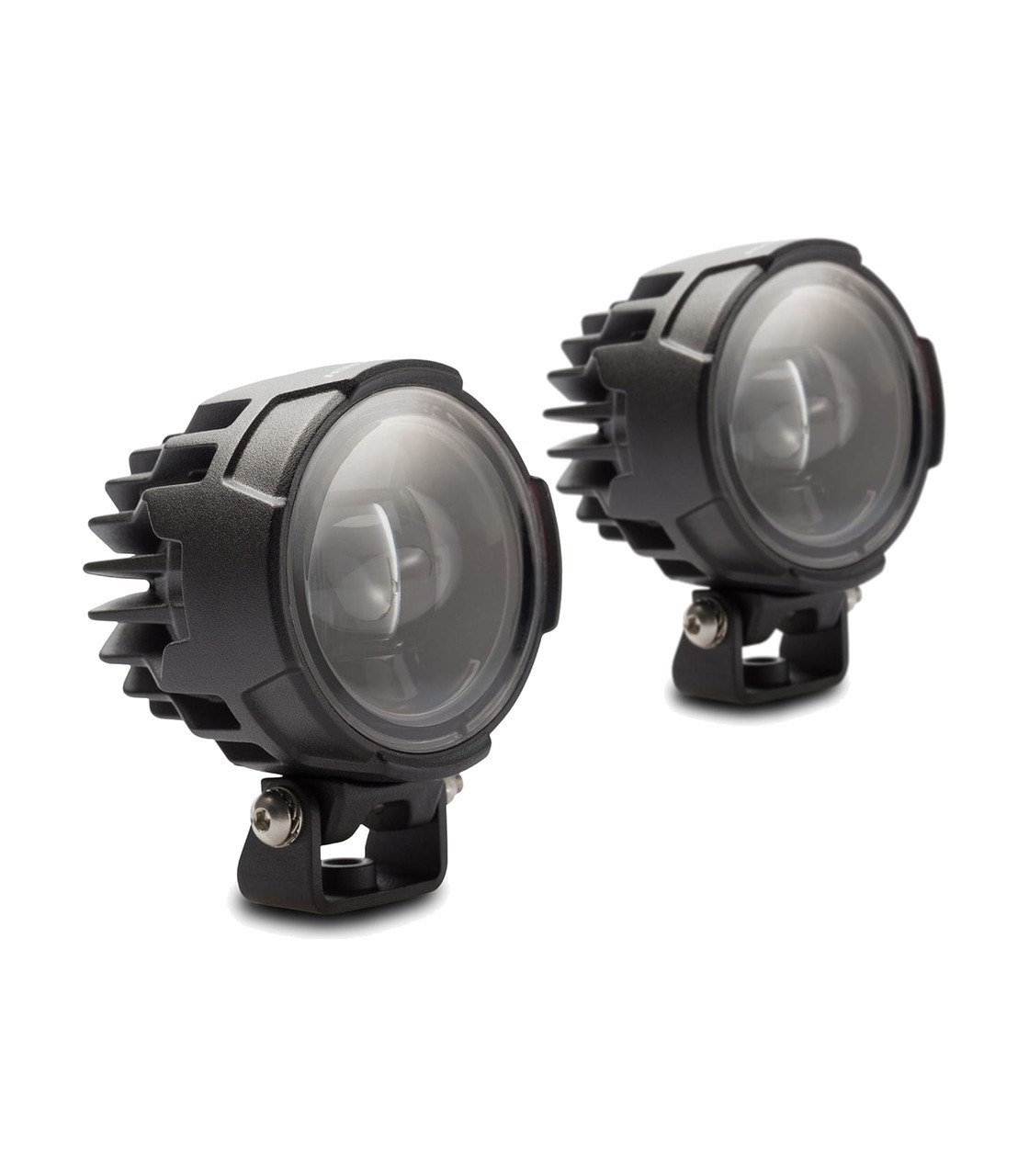

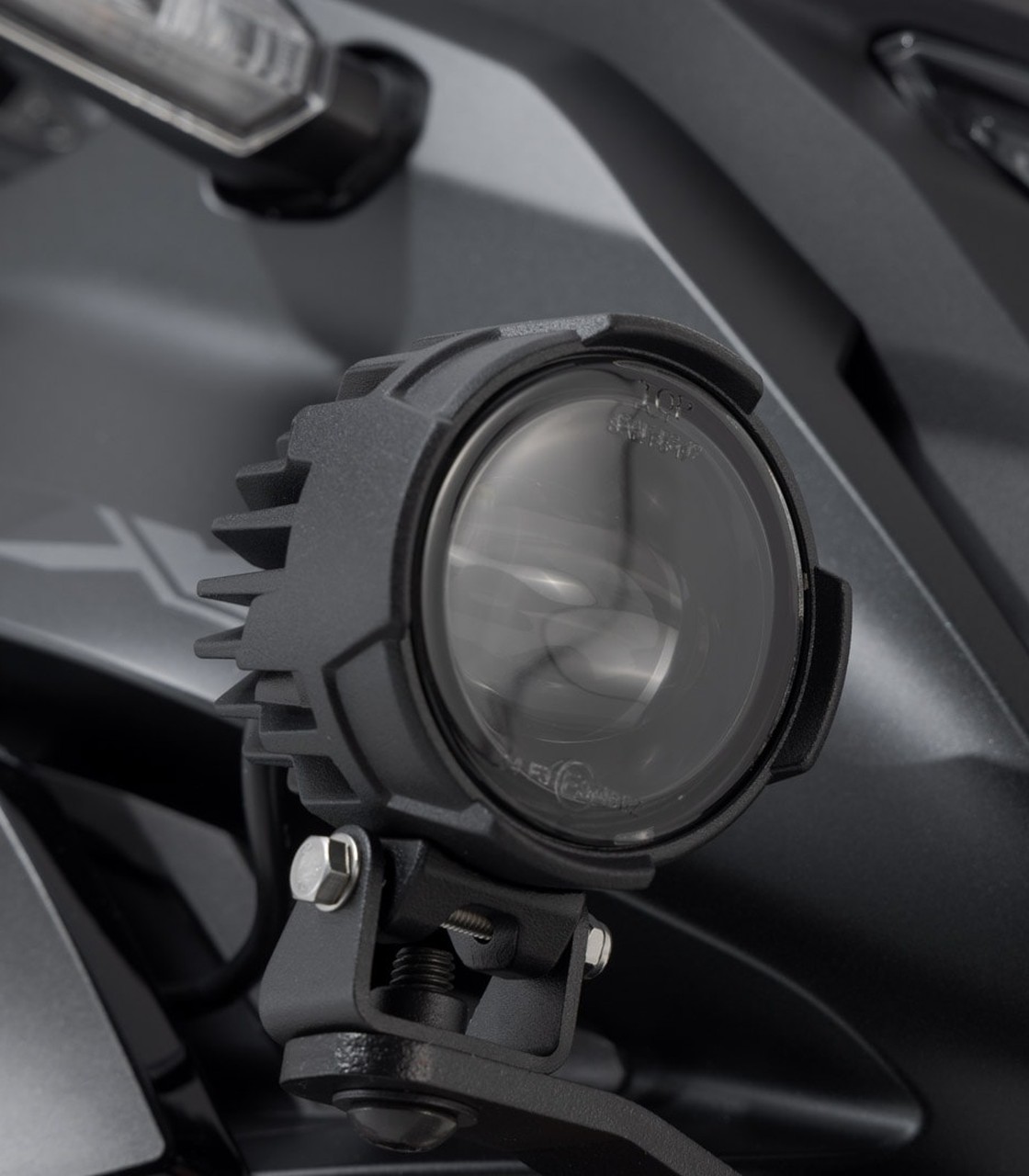

The model-specific brackets attach to existing mounting points to position the lamps as intended. Each compact lamp is 7.1 cm in diameter and uses low-consumption LED technology that requires no maintenance.

• Output: 12 W and 1,050 lm per lamp.
• Protection: IP69-rated resistance to water and dust.
• Approval marking: the lamps carry the ECE R19 F3 mark.
• Materials: aluminium lamps and powder-coated steel brackets.
• Connection: 12 V power via a fused wiring harness connected to the battery, with no changes to the bike’s electrical system.
• Controls: a green-illuminated handlebar switch protected against splashes.
• Included: two lamps, two brackets, the switch, wiring harness, fitting instructions and mounting hardware.

When fitting the lamps, keep the ‘TOP’ marking facing upwards to account for the reflector’s shape. Check the rules that apply to the installation and use of fog lights where you ride.
