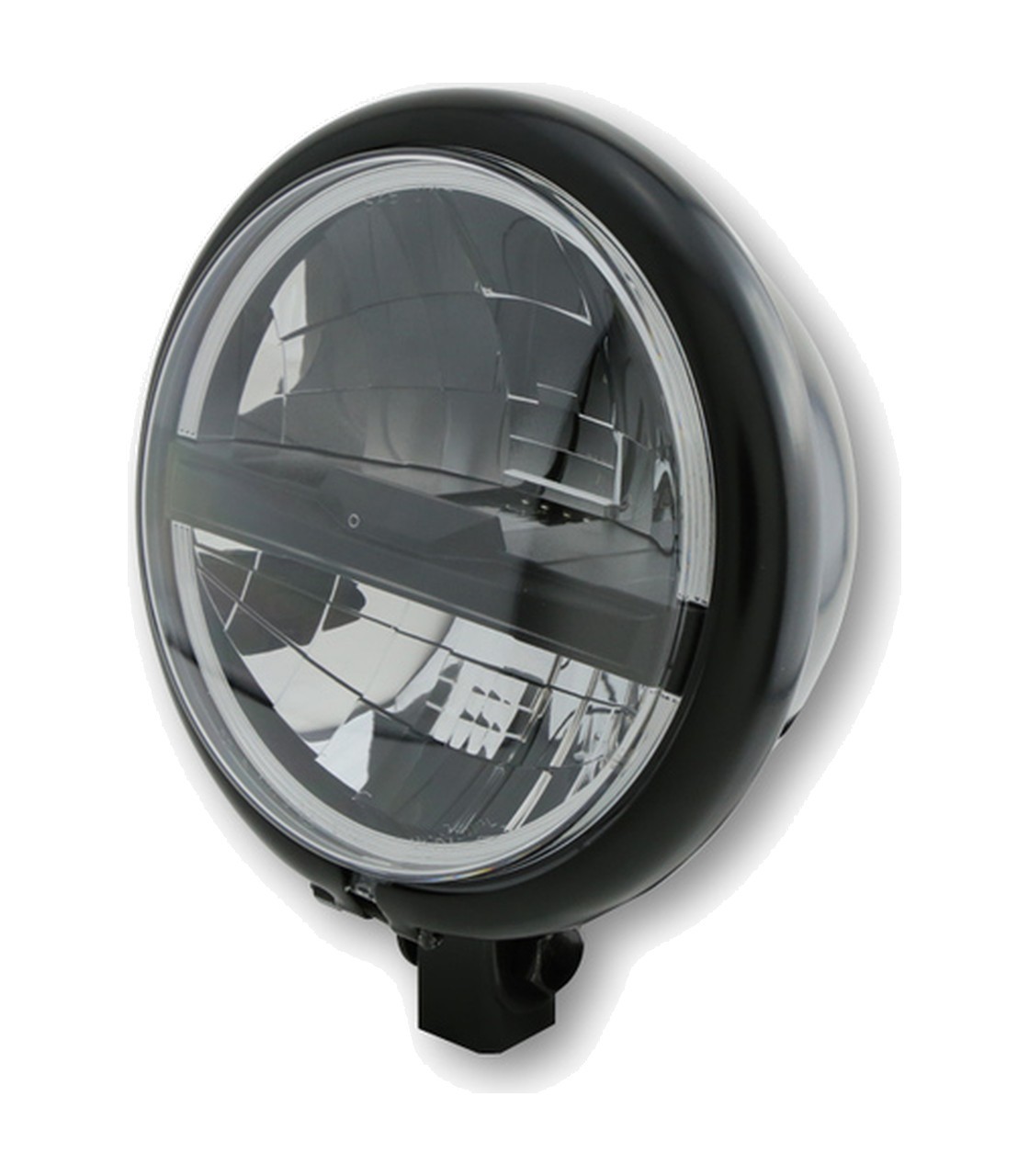

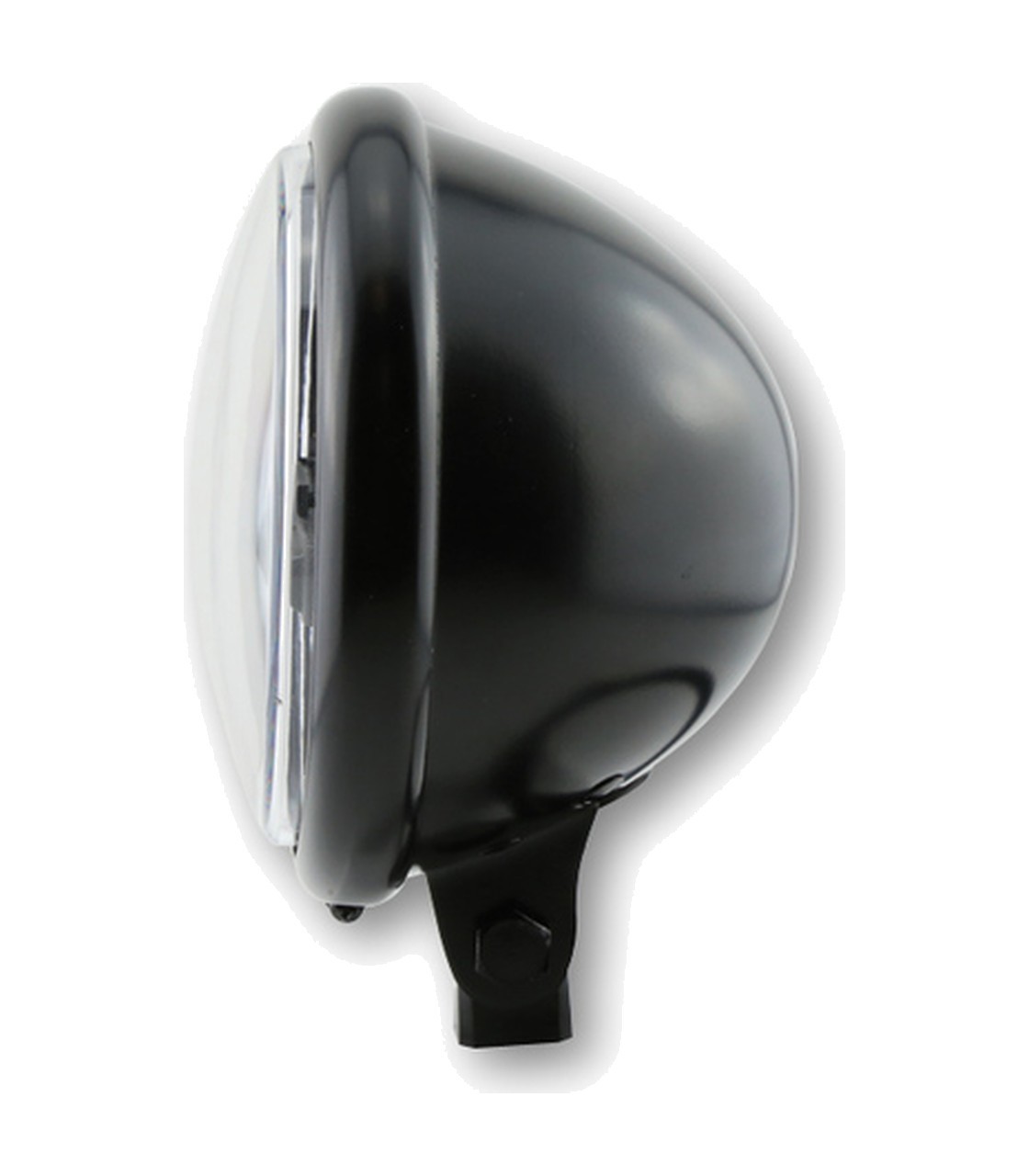

Highsider LED Headlight Bates Style Type 5 146 mm in Black

The HIGHSIDER pro Bates Style Type 5 LED headlight brings a classic look to your motorcycle in a black 5 3/4-inch format. It combines dipped beam, main beam and a position light in one unit.

A round chrome reflector, black trim and clear lens define its appearance. Dipped beam lights the upper half; switching on main beam illuminates both halves.

• Housing: steel.
• Front diameter: approximately 155 mm.
• Depth: 90 mm, or approximately 92 mm including the ring.
• Mounting: bottom mount.
• Approval: E-approved.
• Connections: red for dipped beam (+), white for main beam (+), brown for the position light (+) and black for earth (−); includes a 3-pin connector.

If you are changing your motorcycle’s front-end setup, check the dimensions and wiring before fitting.
