Highsider LED Headlight Flat Type 9 in Black

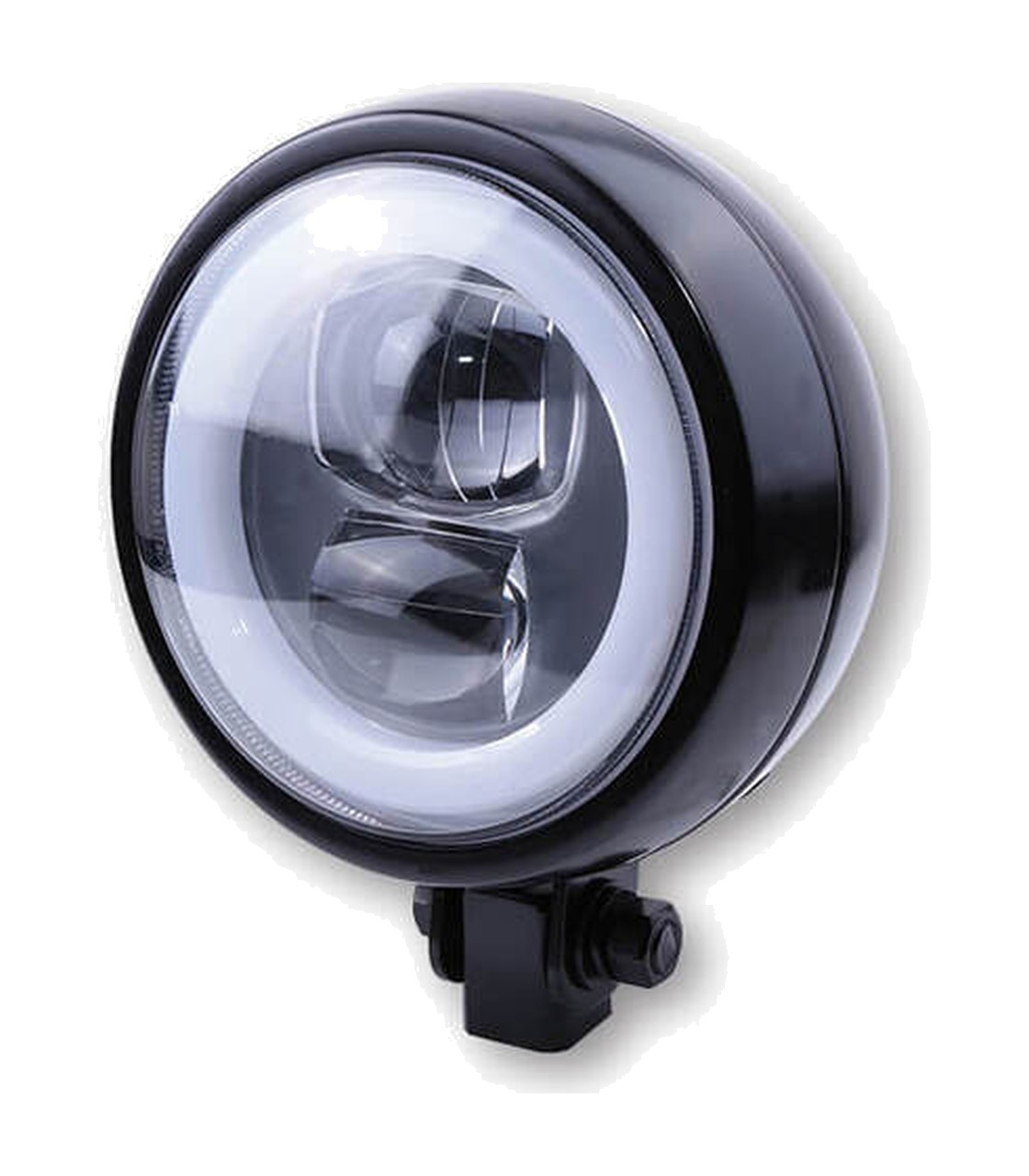

The black HIGHSIDER pro Flat Type 9 LED headlight combines dipped beam, main beam and a position light in a compact 4 3/4-inch unit. Its ring-shaped position light surrounds the reflector, giving the front of your bike a distinctive look.

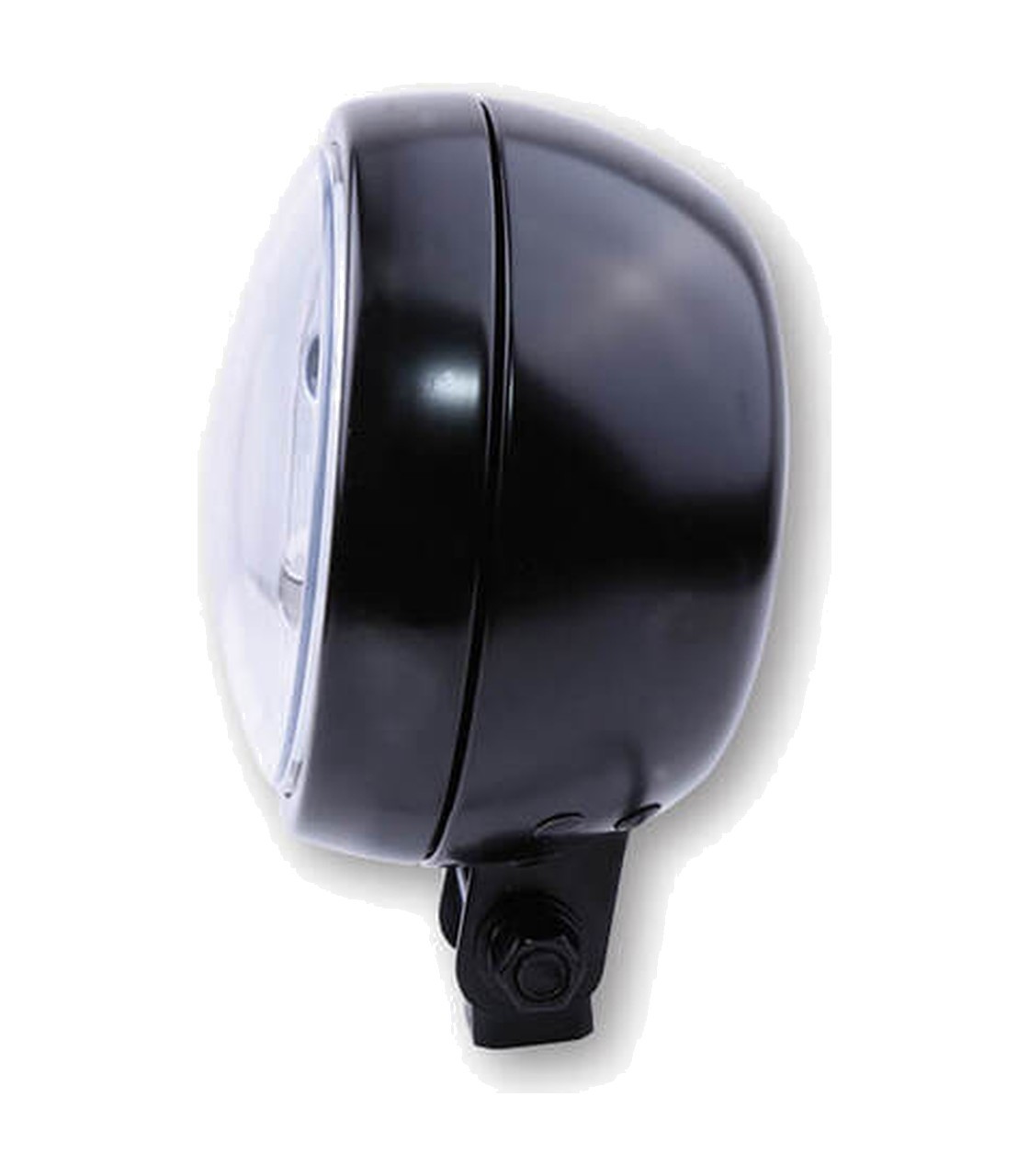

The round steel housing has a flat back. The dipped beam sits in the lower part of the headlight, with the main beam above it.

• Housing: 138 mm in diameter and 95 mm deep.
• Headlight insert: 120 mm in diameter.
• Approval: E-approved.
• Connection: 3-pin connector.
• Main lighting wires: red for main beam (+) and white for dipped beam (+).
• Position light and earth: green for the position light (+) and black for earth (-).

This version has a bottom mounting point. Check the available space and mounting position on your bike before fitting it.
