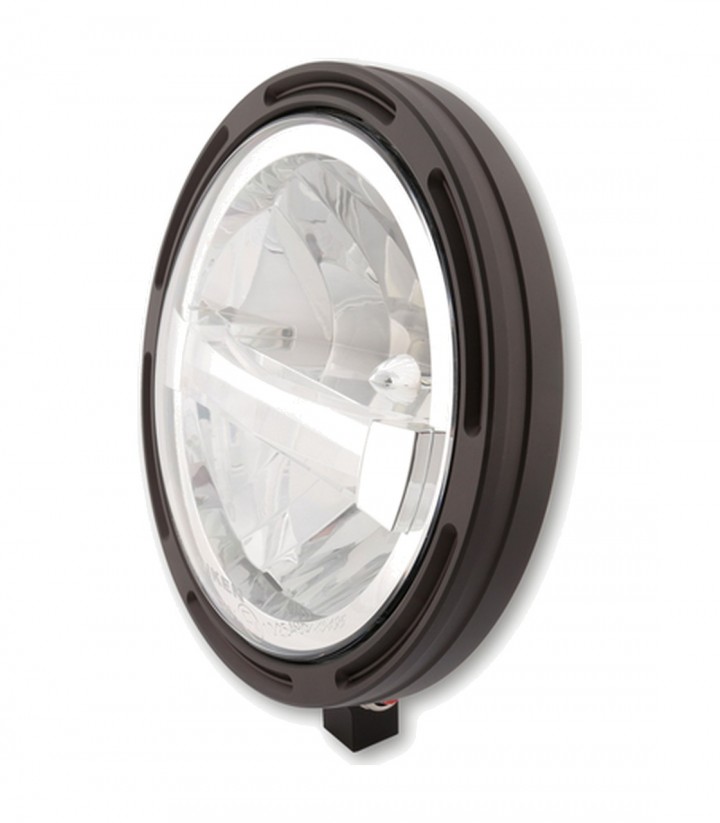

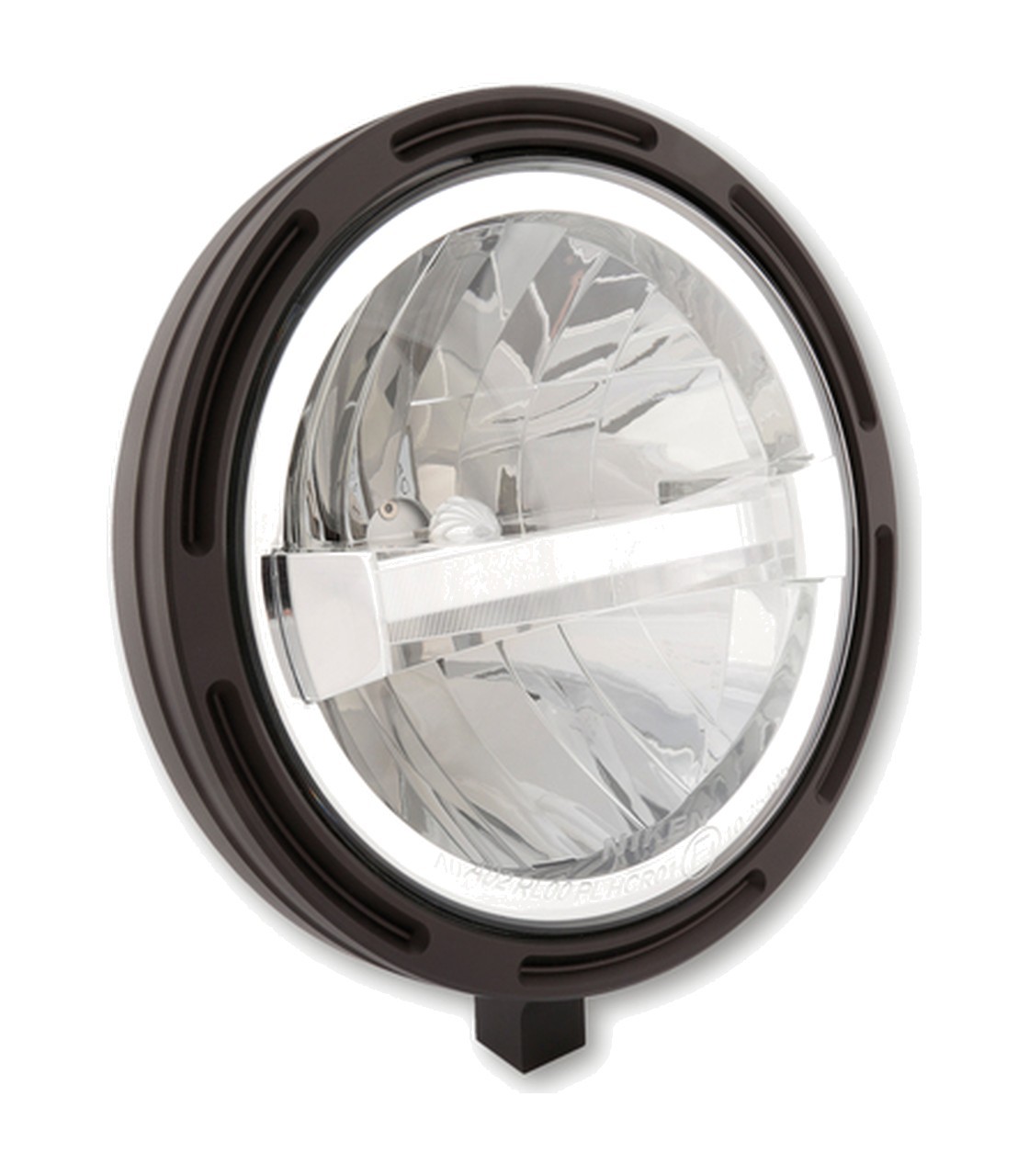

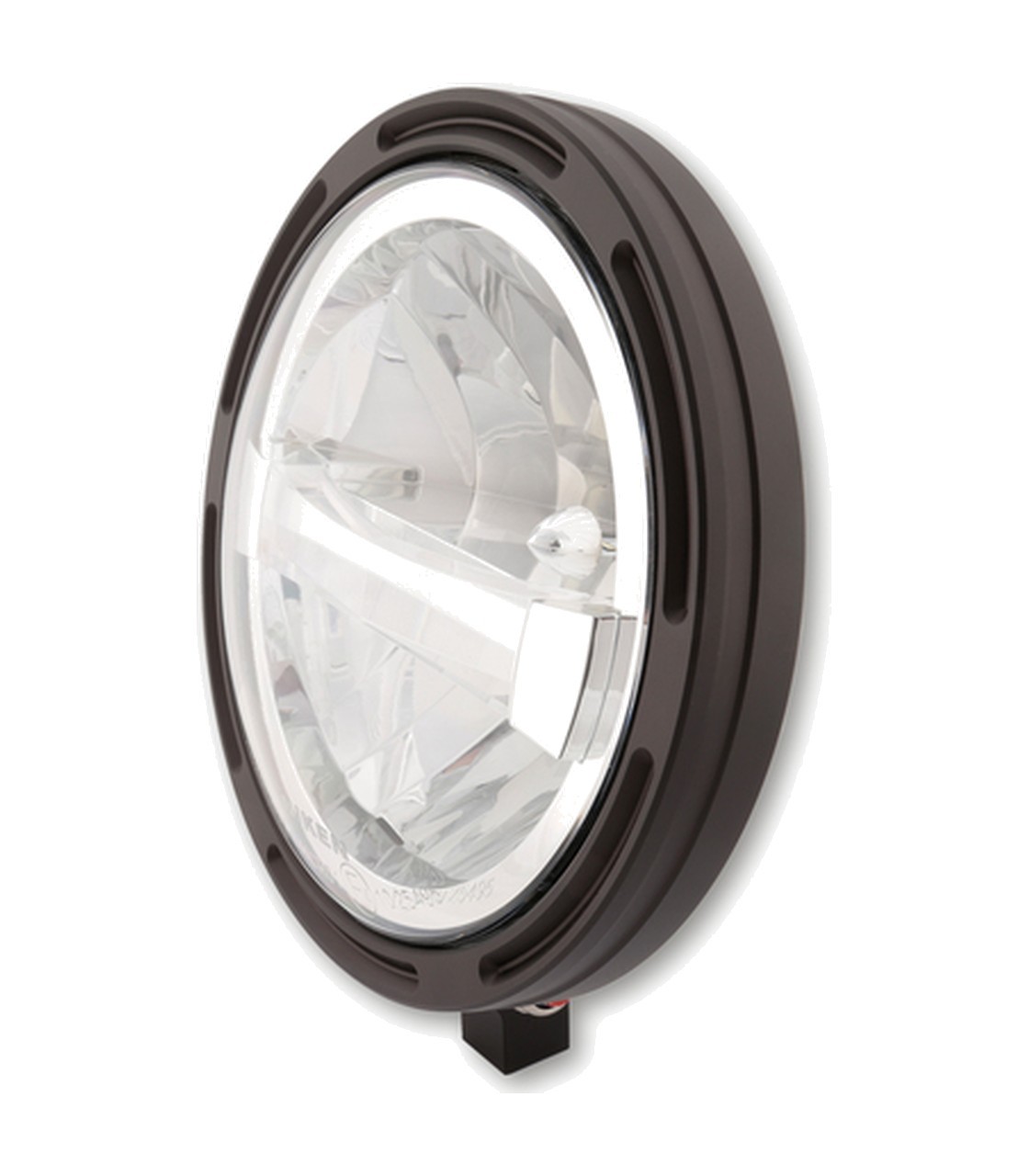

Highsider LED Headlight Frame-R1 Type 4 178 mm in Black

The black HIGHSIDER pro Frame-R1 Type 4 7-inch LED headlight updates your motorcycle’s lighting and appearance. It mounts underneath to the fork bridge without a headlight housing, allowing a narrower fit between the fork legs and better cooling for the LED unit.

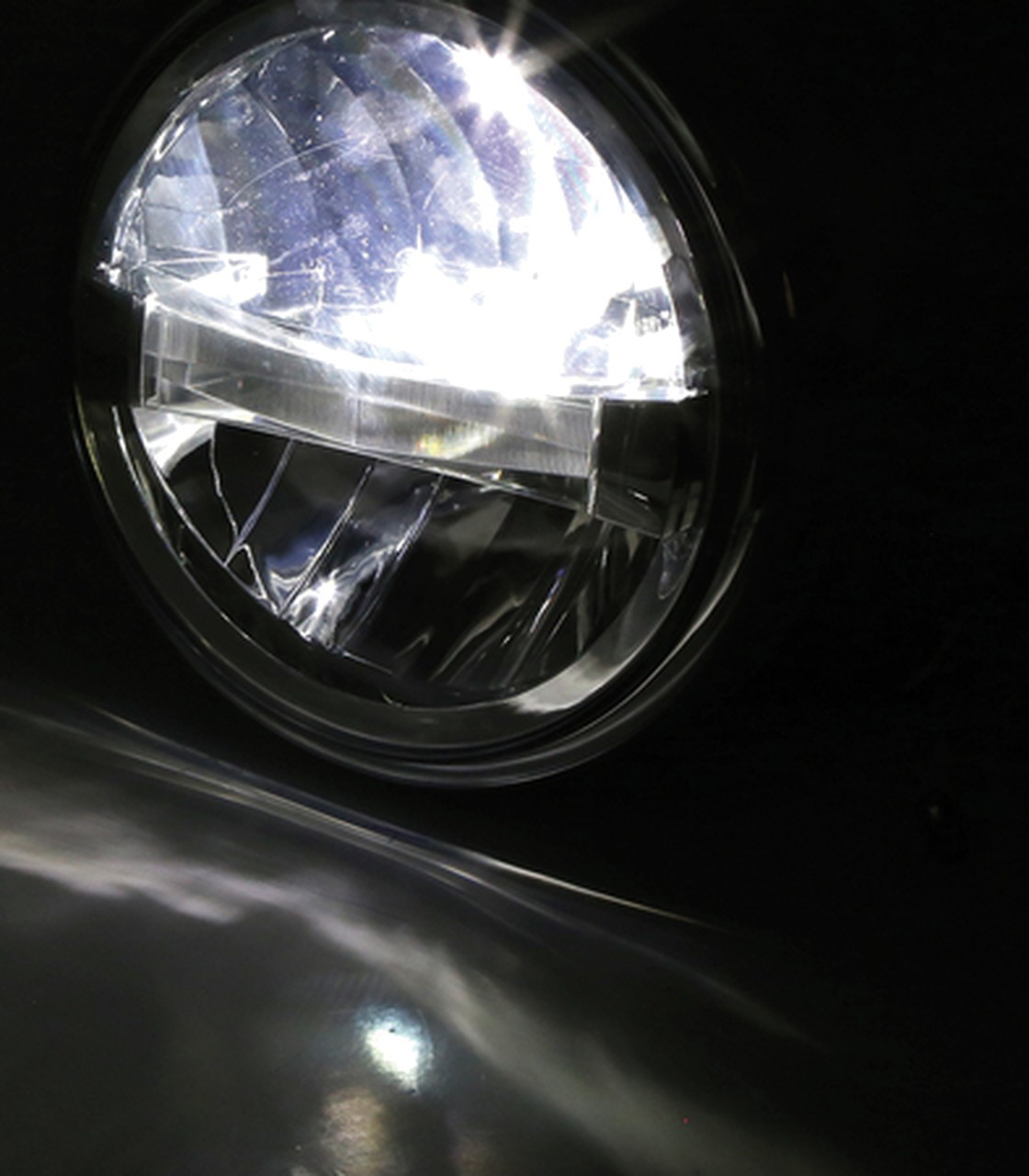

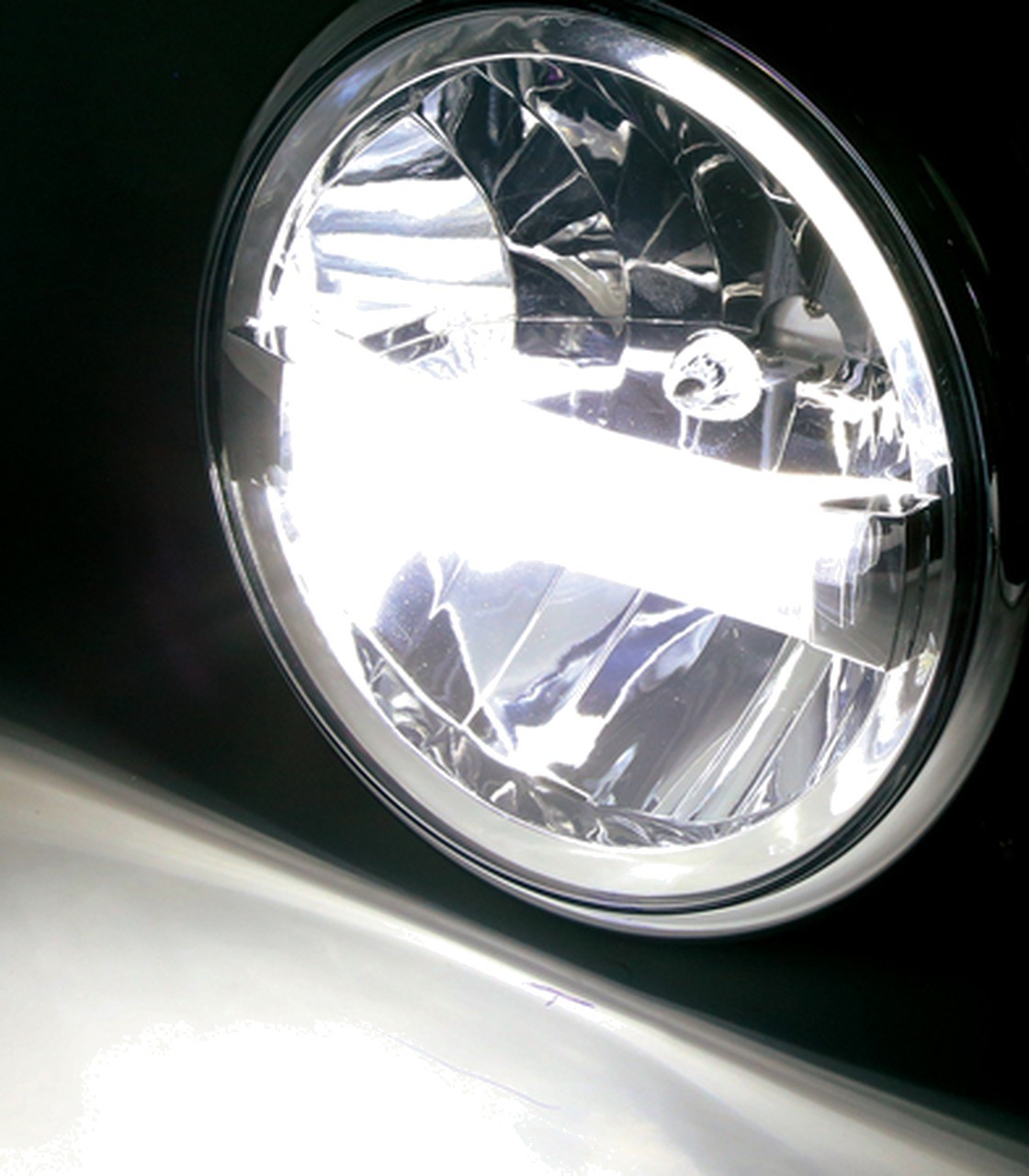

The daytime running and position lights sit in a central strip. The dipped beam shines above it, while the main beam shines below.

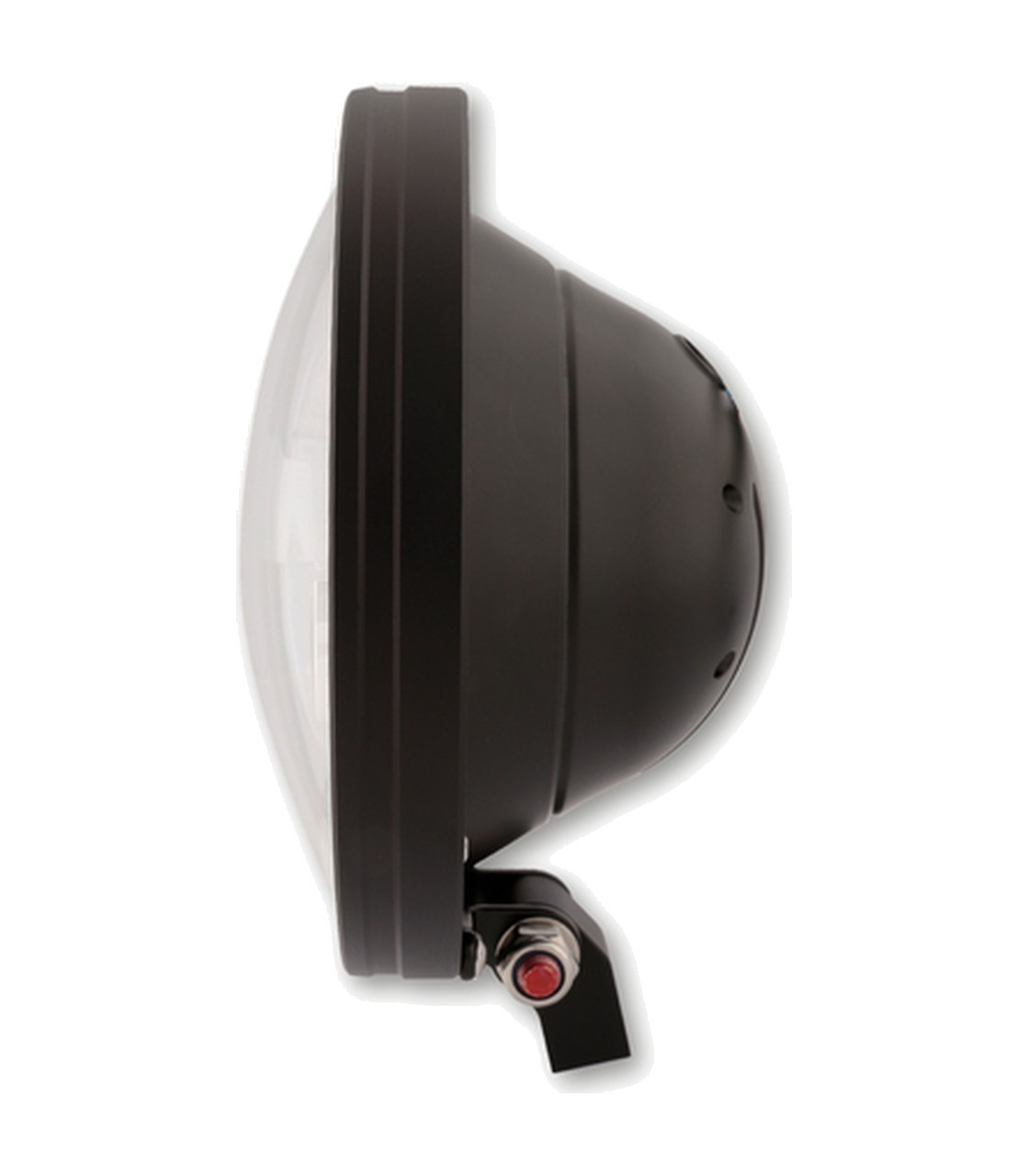

• Mounting ring: CNC-machined aluminium, supplied with a fitting kit.
• Optics: clear lens and chrome-plated reflector.
• Lighting functions: dipped beam, main beam, position light and daytime running light.
• Power at 12 V: 22 W for dipped beam and 13 W for main beam.
• Additional lights: 14 W for daytime running and 2.4 W for the position light, at 12 V.
• Weight: 1741 g.

It is E-approved, with an asymmetric beam approved only for right-hand traffic. If your motorcycle has no light switch, using the daytime running light may require an additional switch and control unit.
