Highsider LED Headlight Insert Type 2 178 mm

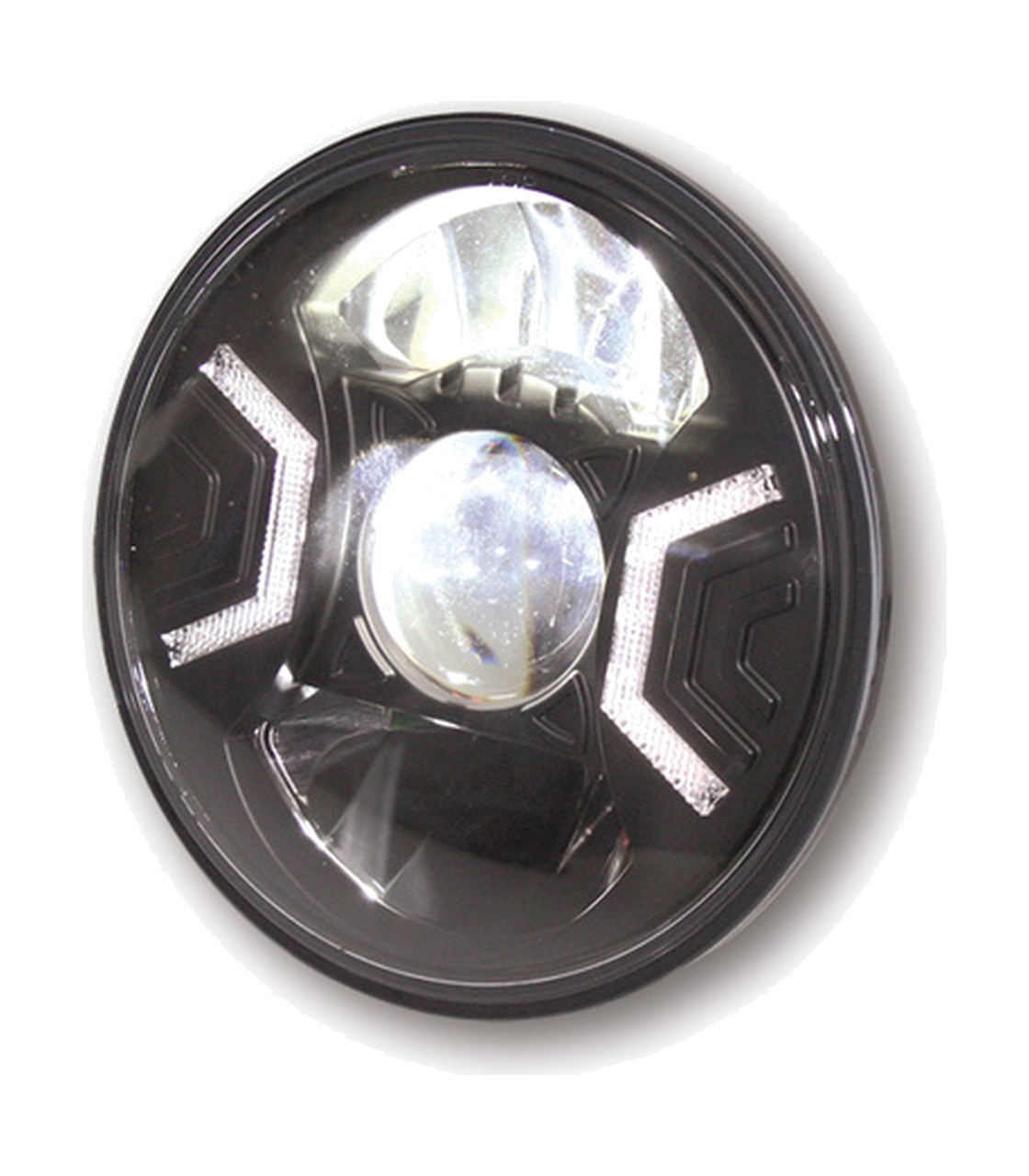

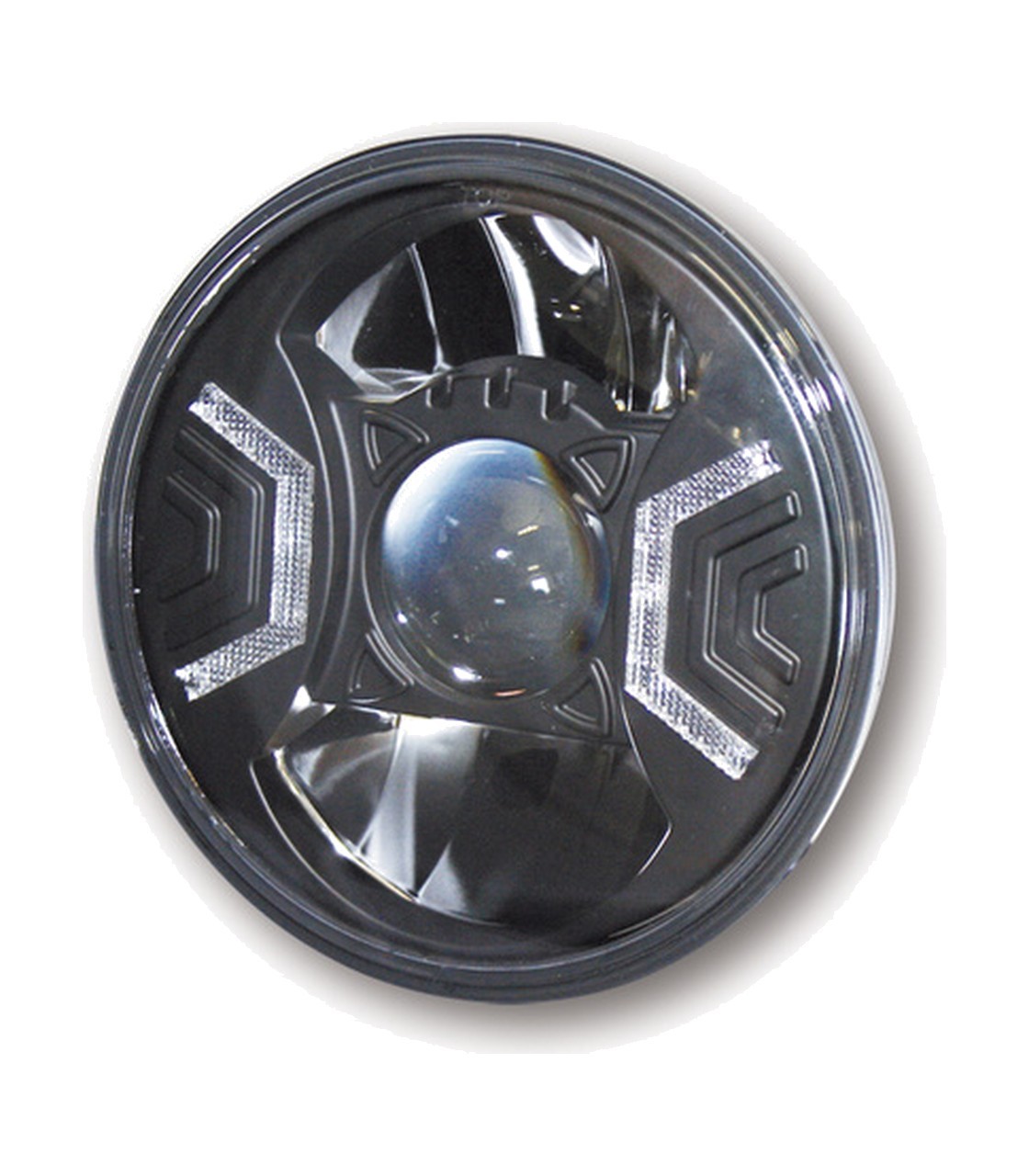

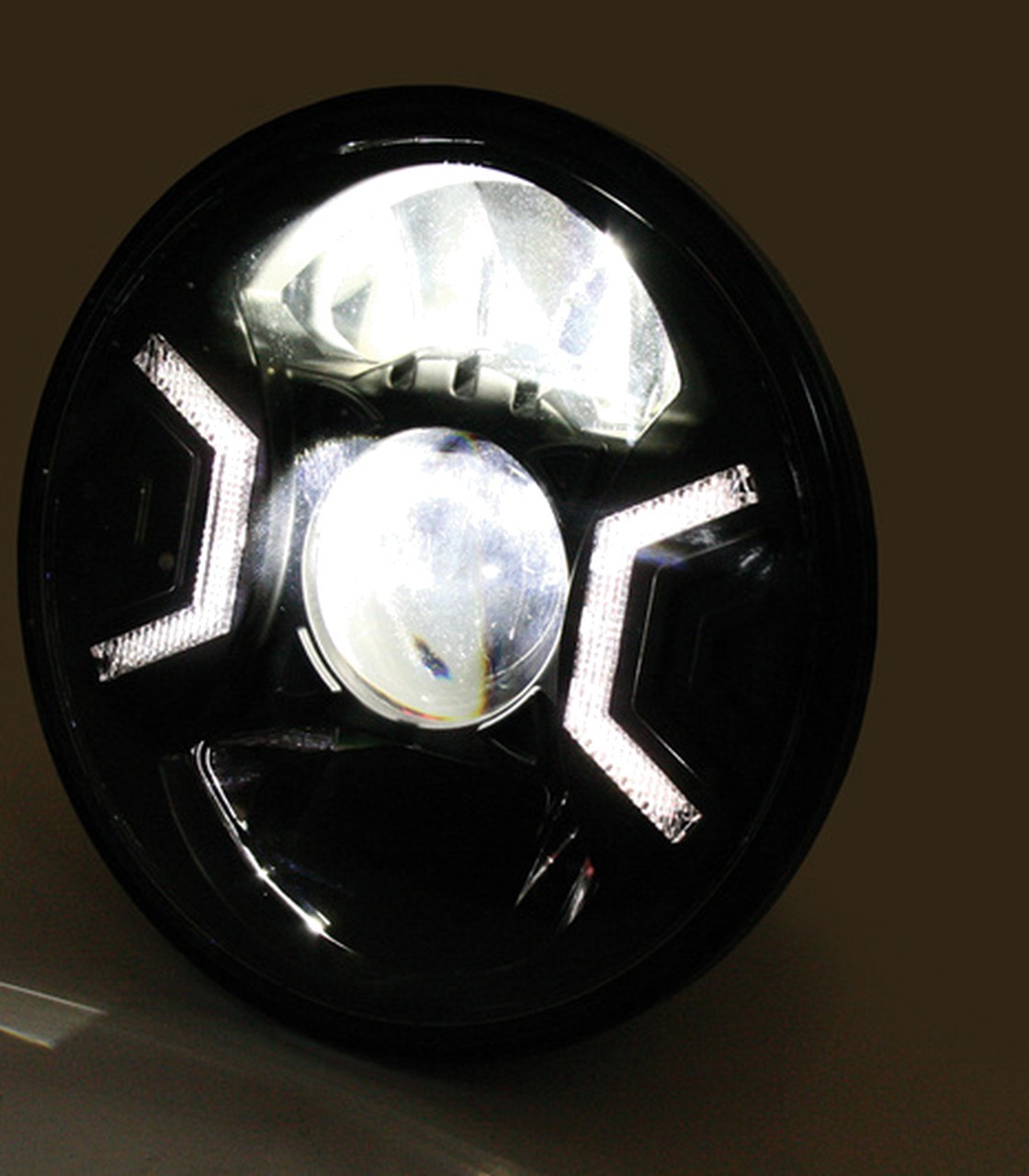

The HIGHSIDER pro Type 2 178 mm LED headlight insert is a round unit for your motorcycle’s front light. Its black reflector combines dipped beam, main beam and a parking light with an asymmetrical light pattern.

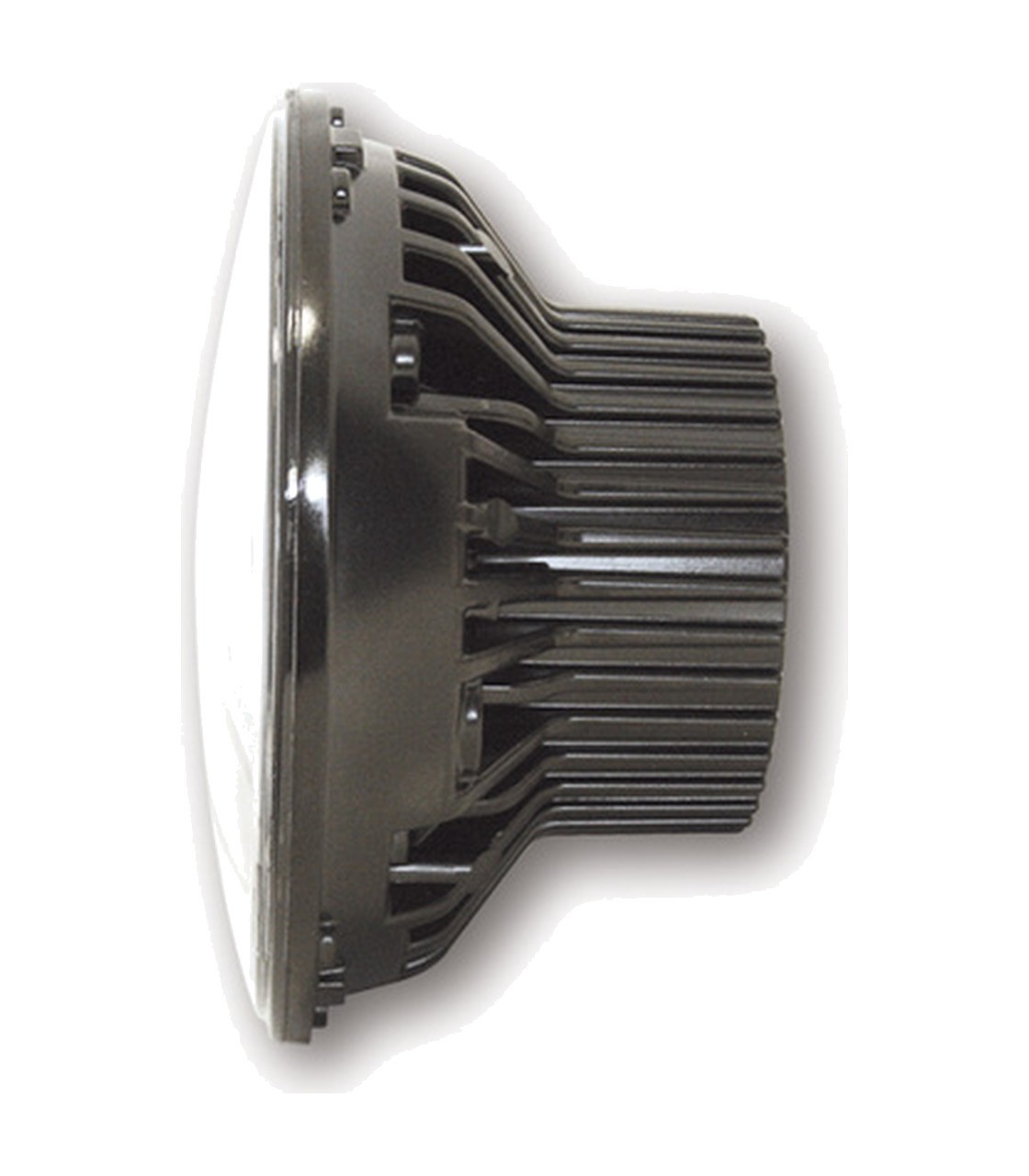

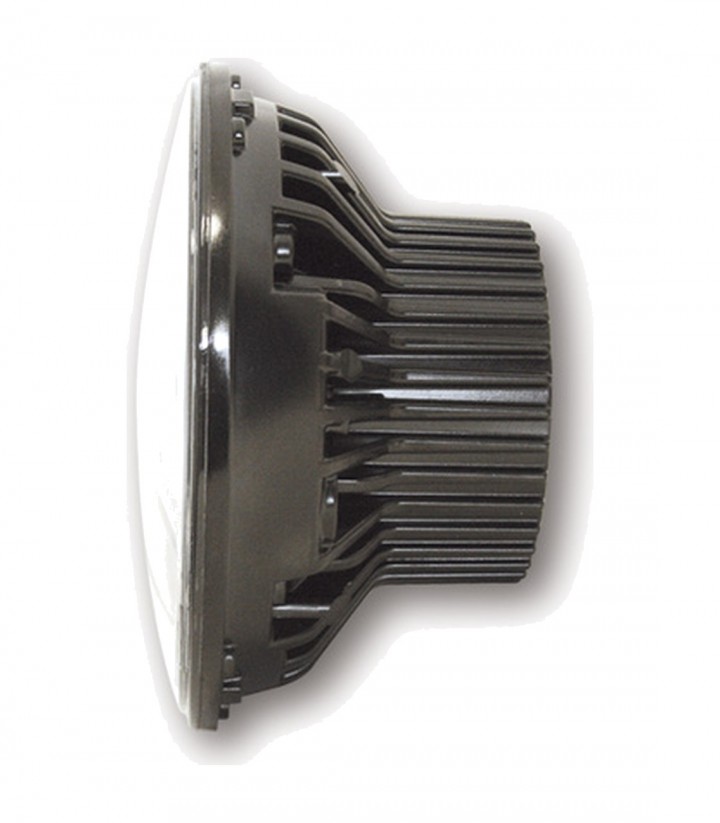

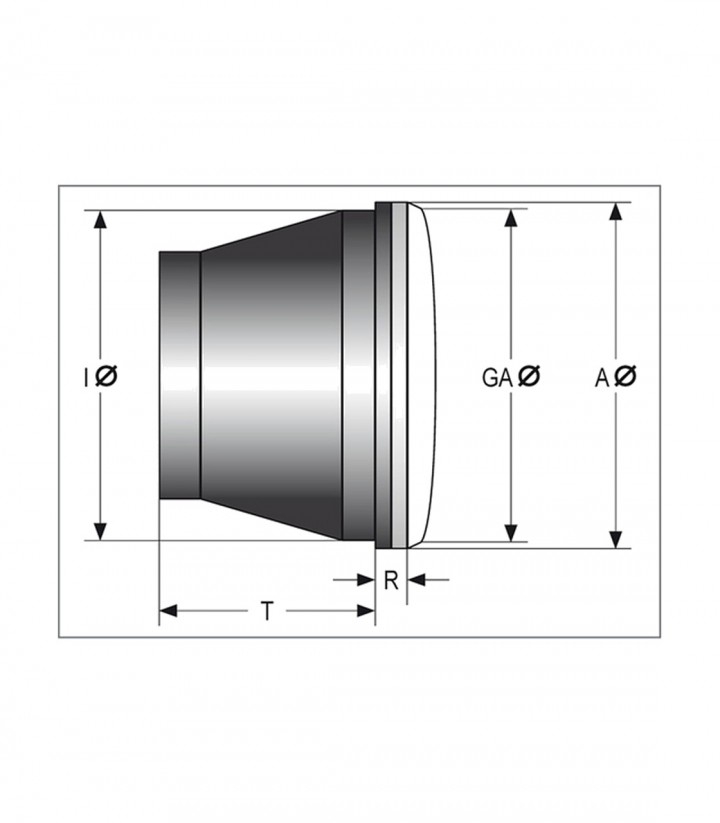

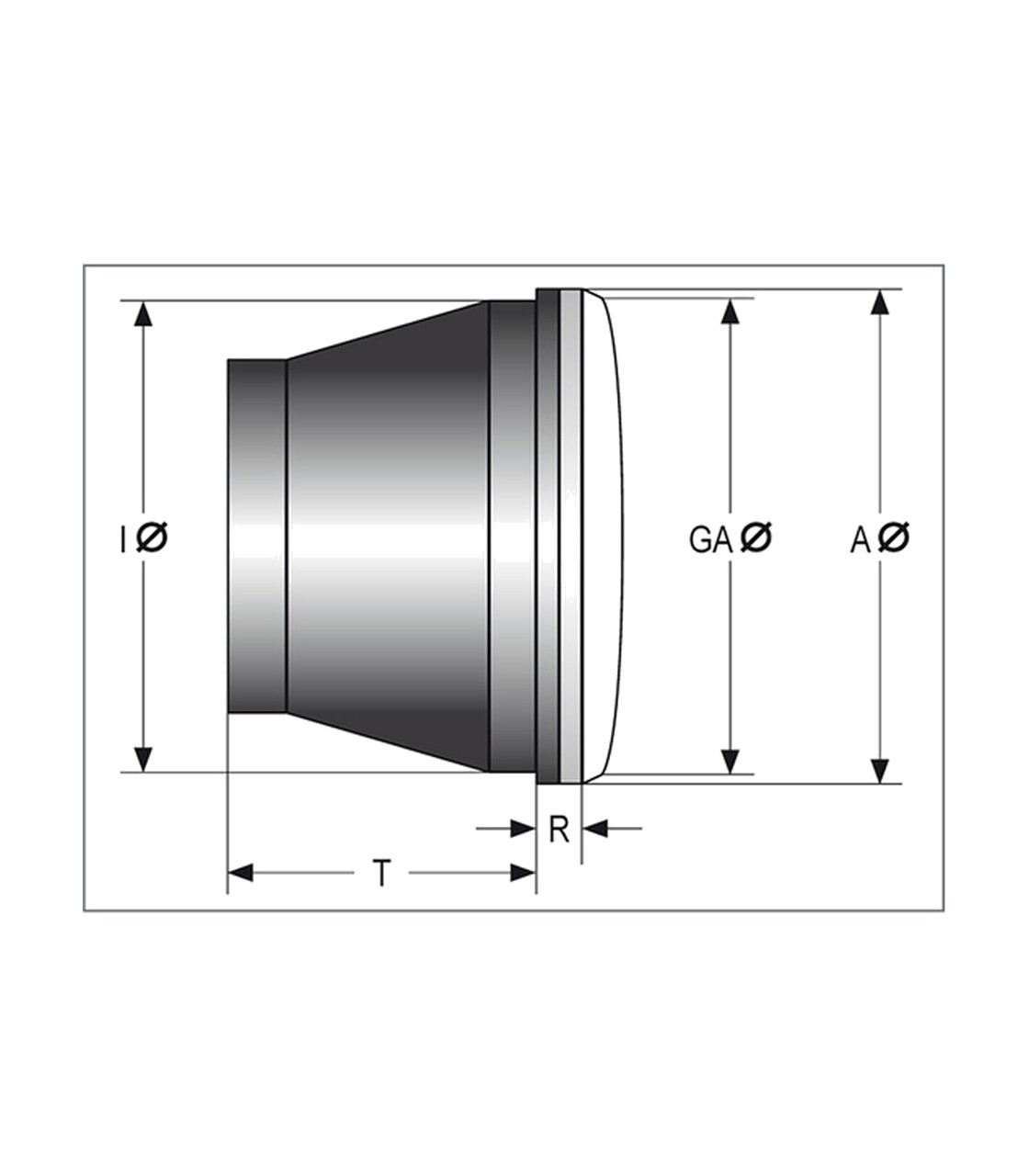

• Dimensions: diameters A 176 mm, GA 165 mm and I 160 mm; heat sink K 99 mm, T 81 mm and R 8 mm.
• Material and weight: aluminium; 1455 g.
• Dipped beam: 1450 lumens at 12 V, drawing approximately 1.6 A (20 W) at 12.5 V DC. The upper reflector and central ellipsoid insert illuminate.
• Main beam: 1582 lumens at 12 V, drawing approximately 1.6 A (20 W) at 12.5 V DC. The upper and lower reflectors illuminate.

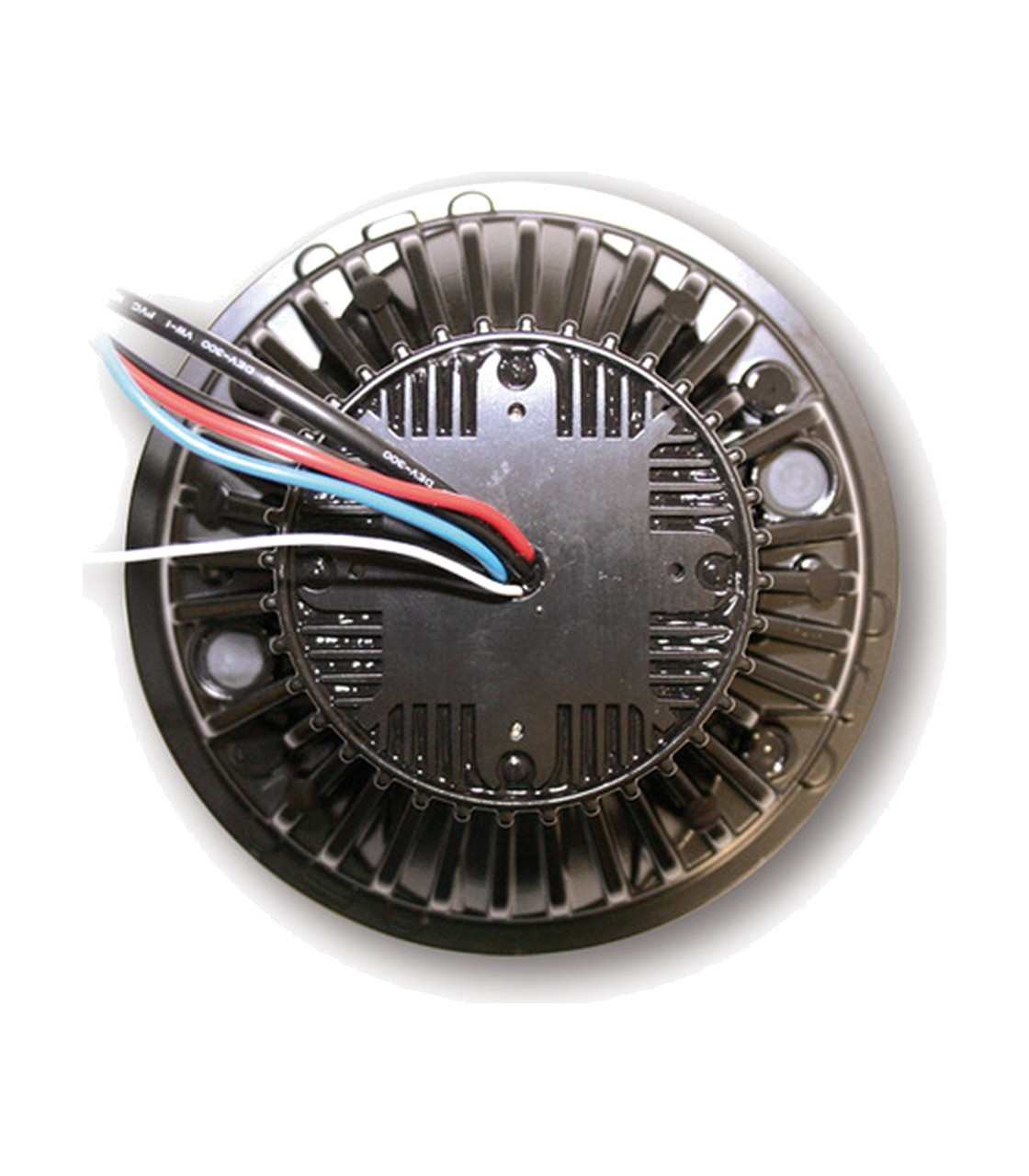

• Main connection: combined plug with black ground, red main-beam and blue dipped-beam wires.

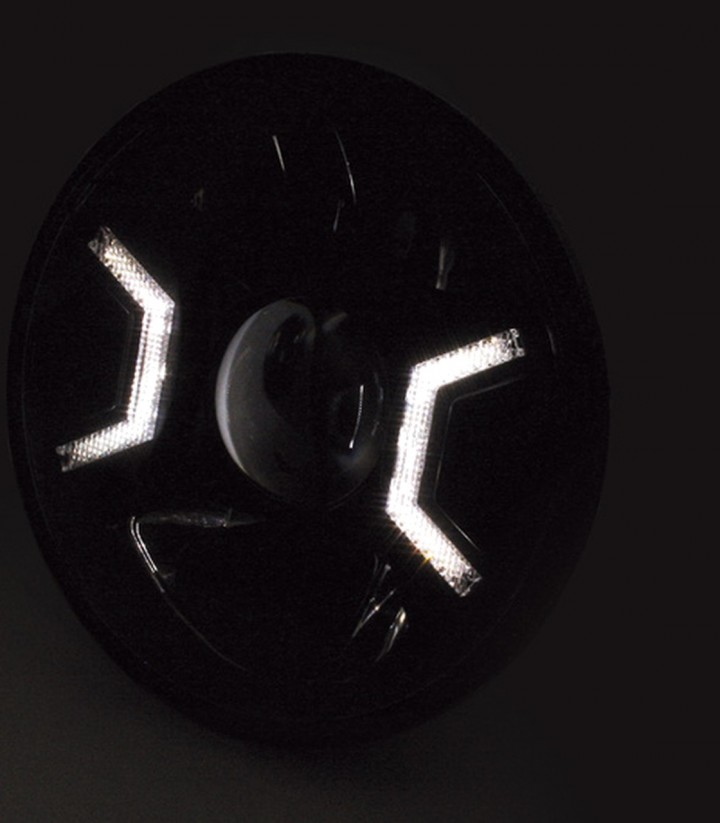

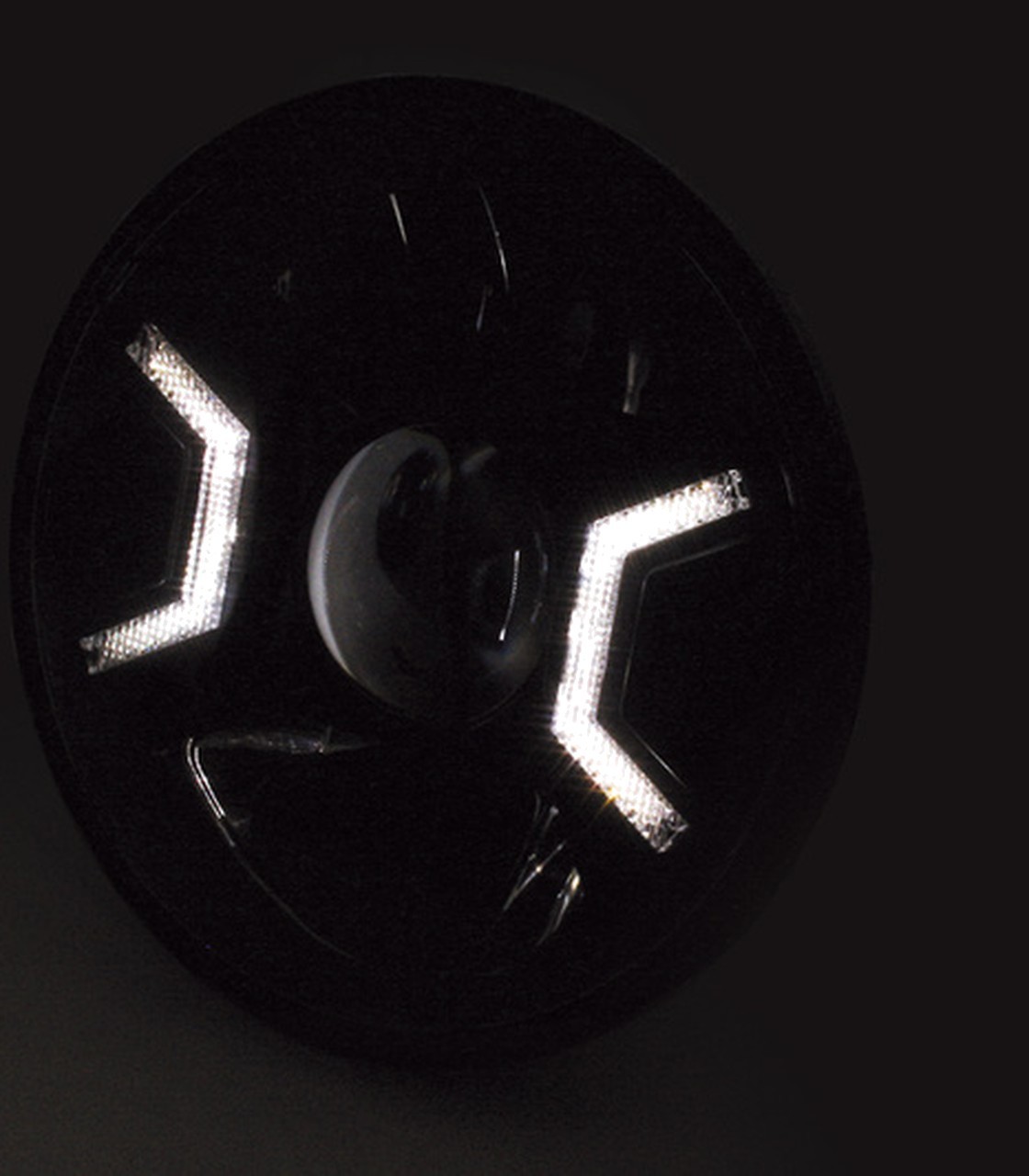

• Additional connections: black and red wires for the parking light, plus a white wire for an optional indicator connection.

This insert is E-approved for right-hand traffic only. Check its dimensions and connections before fitting it to your motorcycle.
