Highsider LED Headlight Insert Type 4 178 mm

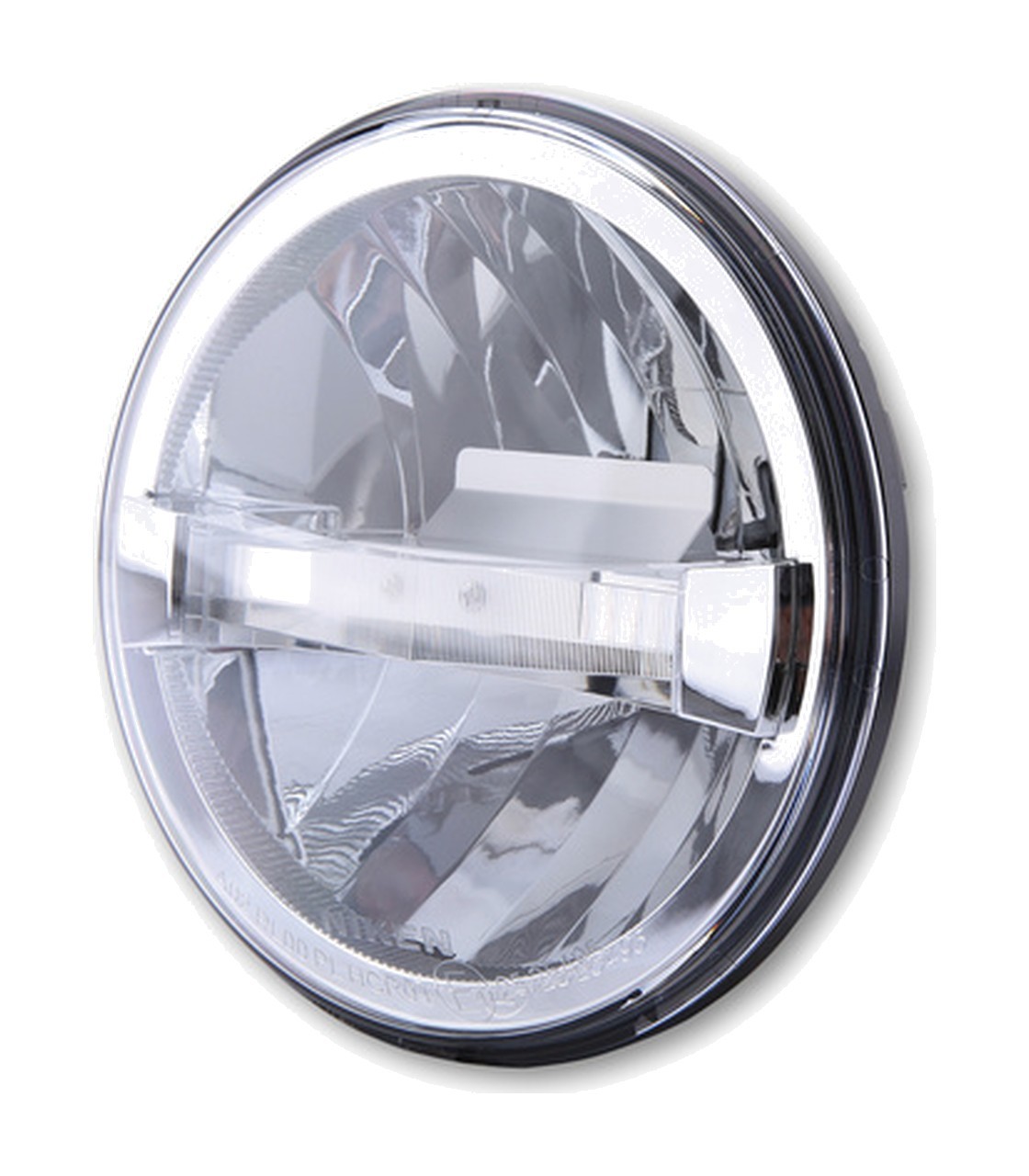

The 178 mm HIGHSIDER pro Type 4 LED headlight insert combines dipped beam, main beam, position light and daytime running light for the front of your motorcycle. It has a round chrome-plated reflector and clear glass.

The position and daytime running lights sit in a central strip, with dipped beam above it and main beam below. This arrangement gives each lighting function a distinct place within the insert.

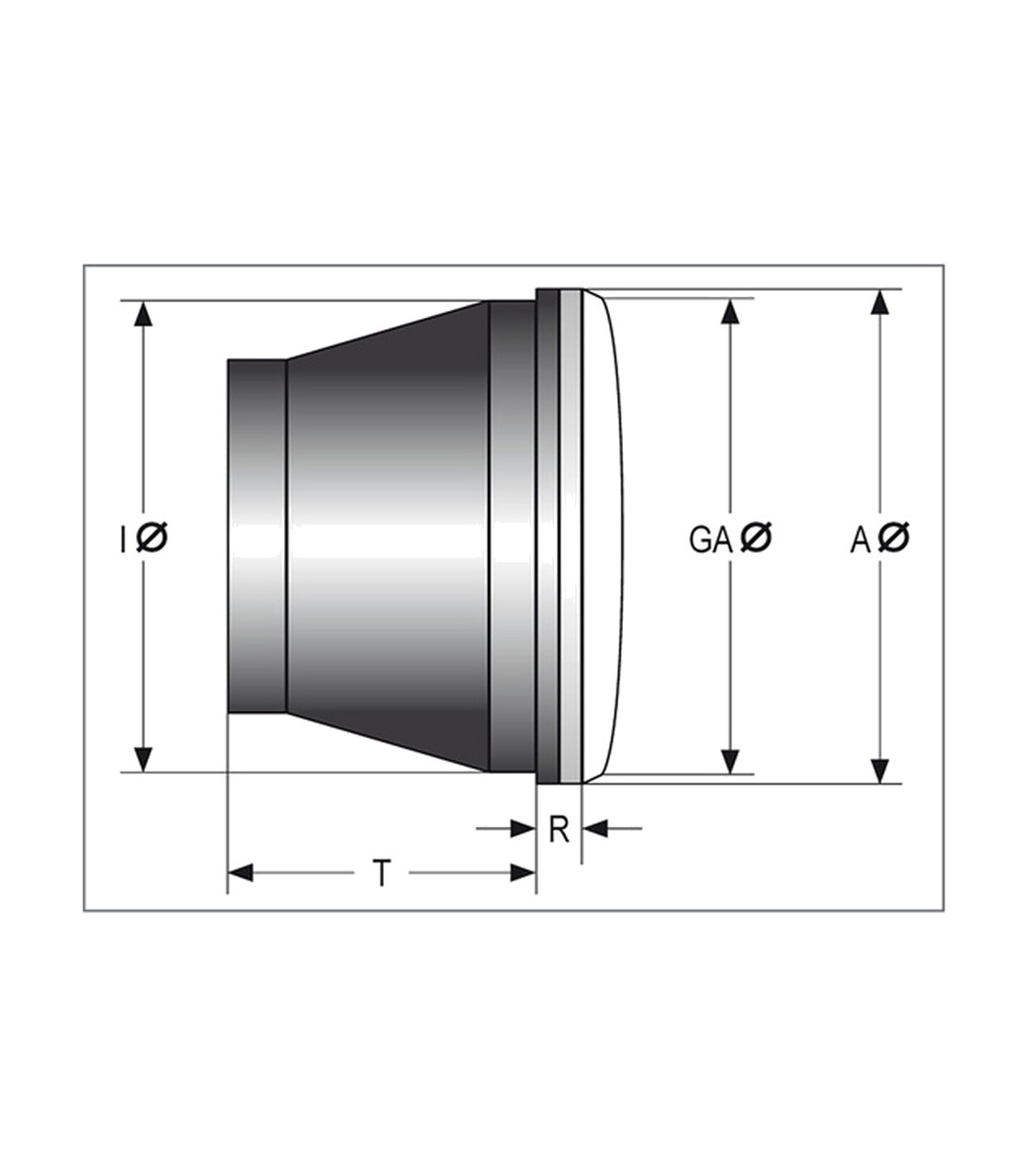

• Diameters: A is 177 mm, GA is 168 mm and I is 160 mm.
• Other dimensions: T is 61 mm and R is 10 mm.
• Dipped and main beam: at 12 V, they draw 22 W (1.8 A) and 13 W (1.3 A) respectively.
• Daytime and position lights: at 12 V, they draw 14 W (1.2 A) and 2.4 W (0.2 A) respectively.
• Weight: 1010 g.
• Connection: a standard 3-pin plug is supplied and must be fitted after the reflector is installed.

Its asymmetrical beam is approved only for right-hand traffic. To use the daytime running light on a motorcycle without a light switch, you need the HIGHSIDER pro DRL Control-Box CB1.
