FKS 504

New product

Notice: Please note that reference FKS 504 is supplied without the spring, which is sold separately. If you prefer to receive it with the springs installed, please contact us and we will be happy to assist you.

More details

886,57 €
Tax incl.

1 043,02 €

-15%

Data sheet

Brand:Öhlins

More info

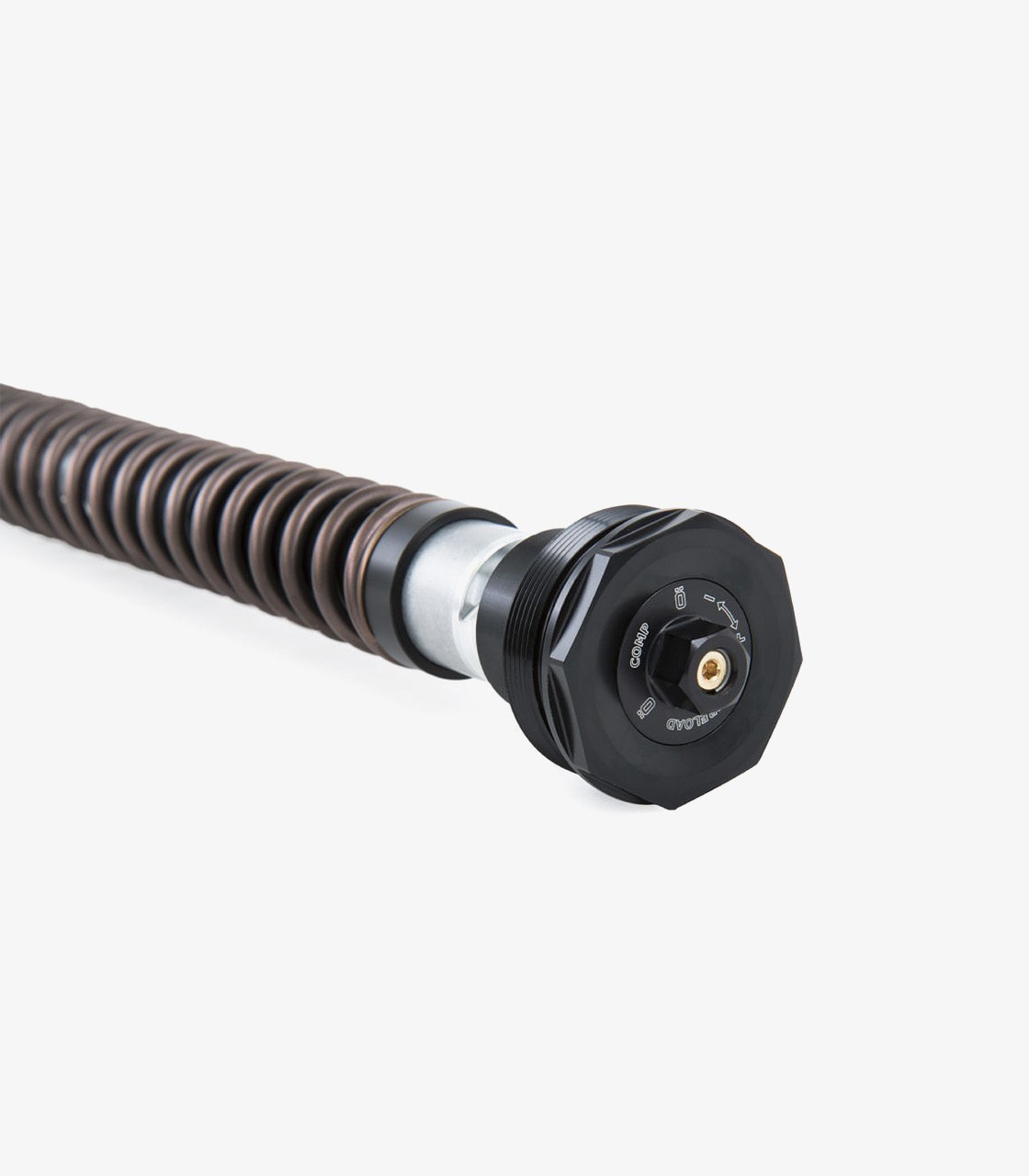

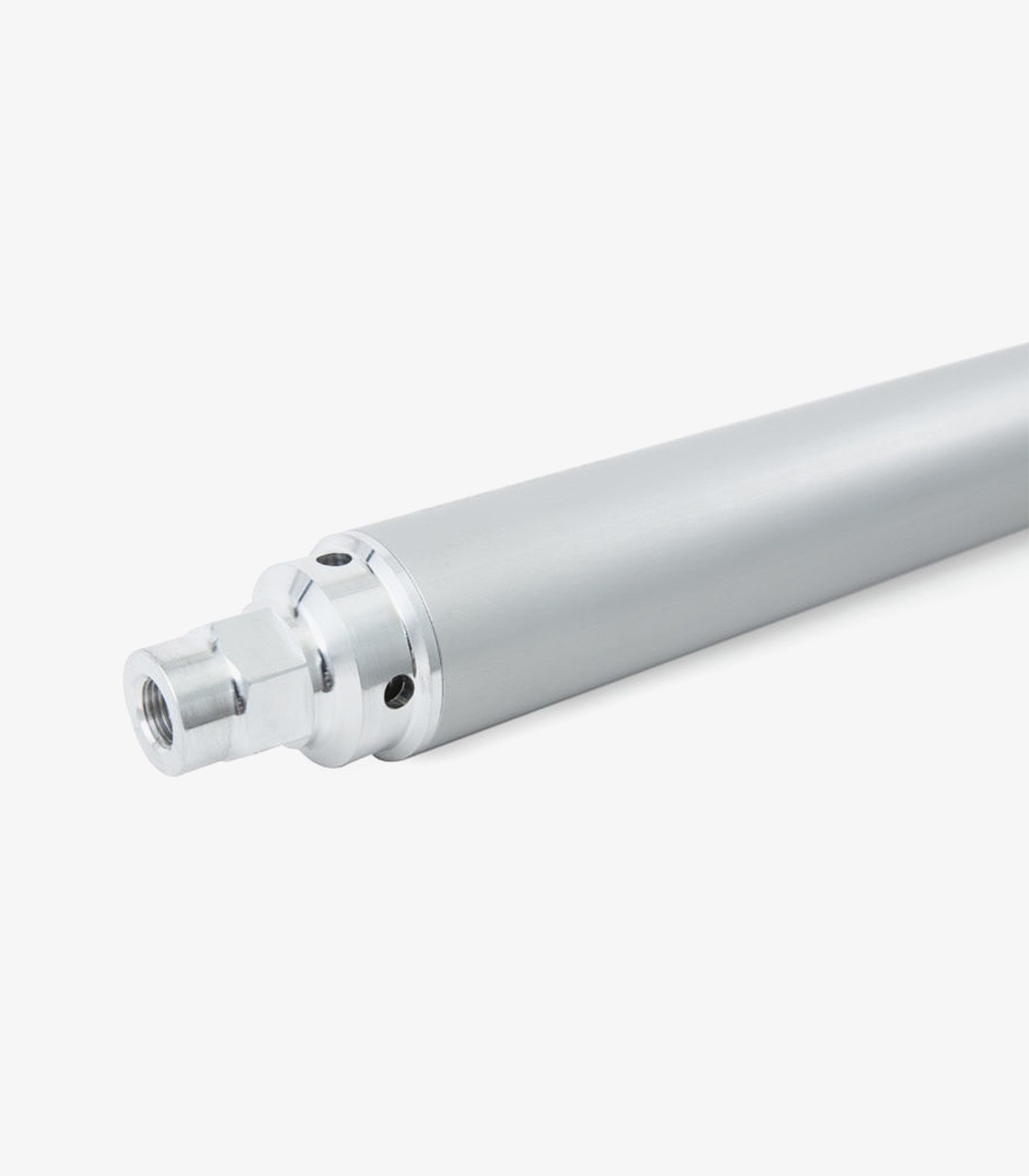

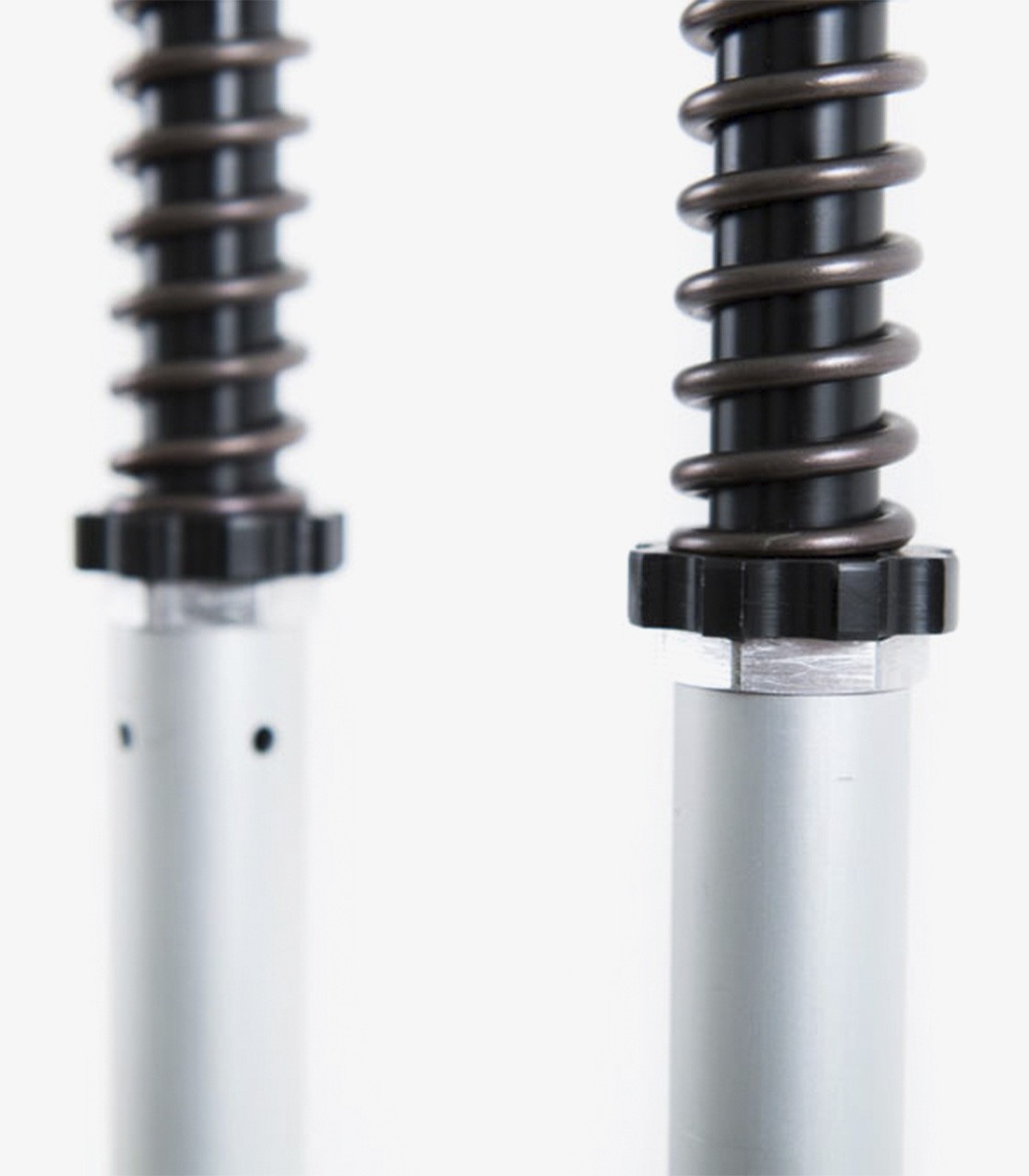

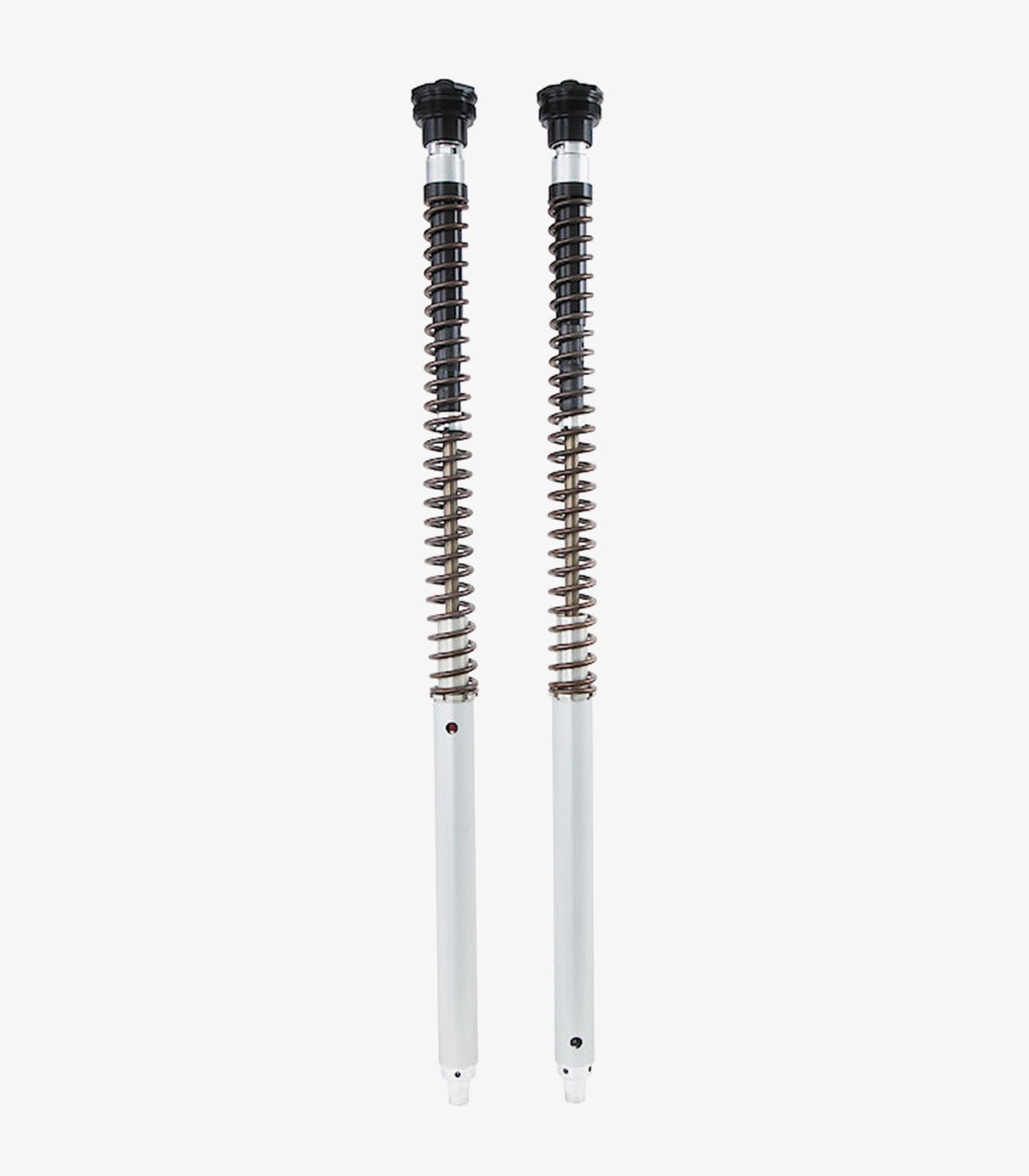

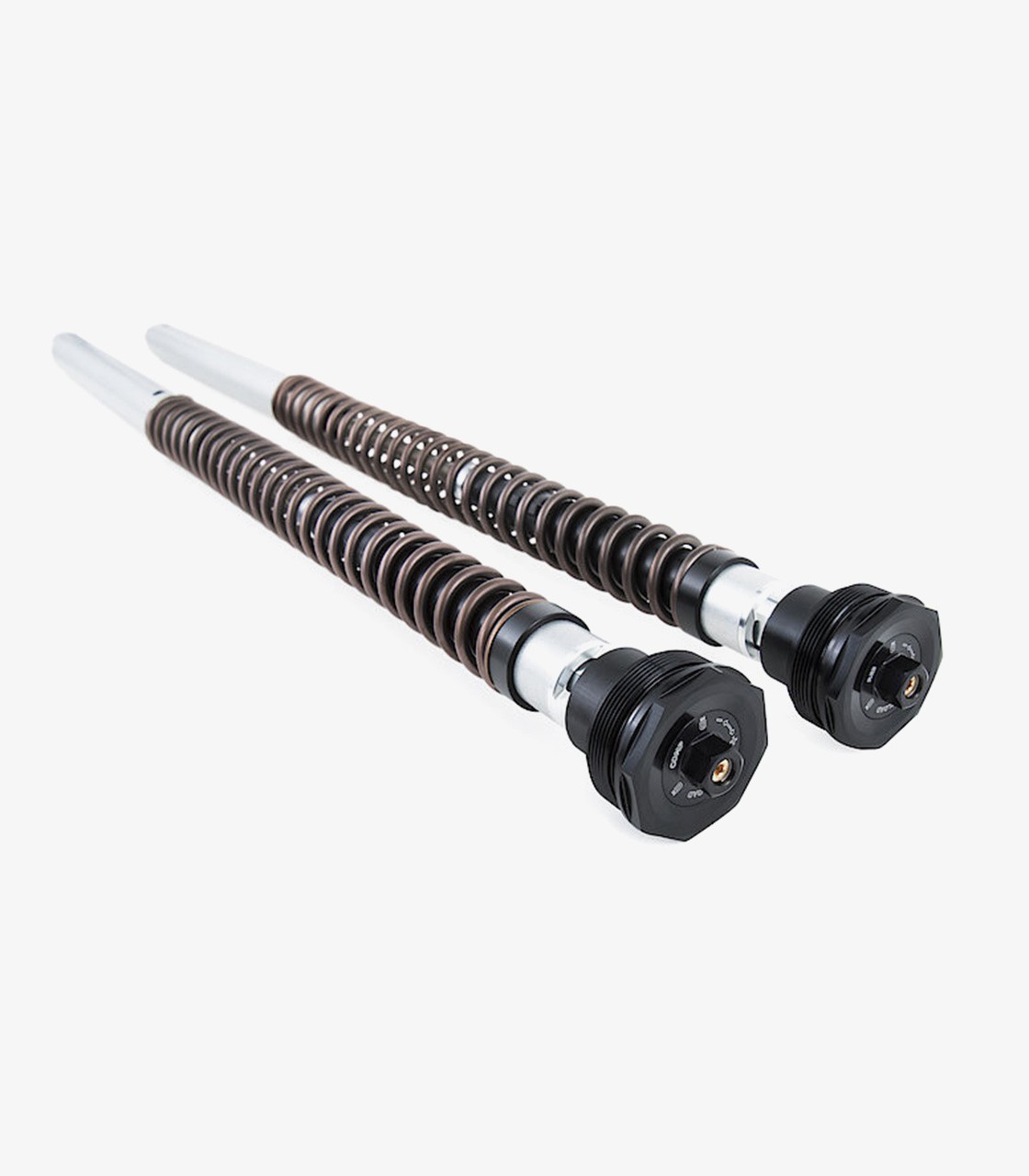

Öhlins fork cartridges are designed to significantly enhance front suspension performance, delivering improved control, stability, and sensitivity in all riding conditions. They replace the original internal fork system with a high-precision assembly developed using Öhlins’ extensive racing experience. Thanks to their advanced technology, they allow for custom adjustments in compression, rebound, and preload—adapting seamlessly to both road and track use.

  • It offers 137 mm of travel for optimal response across all types of terrain.
  • Total fork length: 804 mm, ideal for improving geometry and control.
  • Oil level measured at 160 mm from the top edge of the cartridge to the oil surface, with the cartridge compressed and without the spring.
  • Important: This product is supplied without the spring, which is sold separately. If you prefer to receive it with the springs installed, please contact us and we will be happy to assist you.

Compatible Models

Models:Years:
Yamaha FZ-092014 - 2020
Yamaha MT-09 SP2014 - 2020
Yamaha MT-092014 - 2020
Yamaha Tracer 900 GT2015 - 2020
Yamaha Tracer 9002015 - 2020
Yamaha XSR9002016 - 2021

In this table, you can see all the motorcycle models that are compatible with this reference. If you don’t find your motorcycle in this list, it is most likely not compatible with this product.
